Factory Price C Purlin Machine Price List
Product details of the c purlin machine
Product Specification
Shaft material: 45# Steel Outer Diameter: 60mm
Showroom Location: None
Cutting type: Hydraulic Cutting
Voltage: 380V
Color: Client's Request
Quick Detail
佛山市立鼎科技有限公司 uses the most advanced technique in China, in order to produce the most high quality c purlin machine. There is a wide of applications for c purlin machine which is very useful. The c purlin machine developed by our company can be applied in different fields. Liding Machine is also famous for its professional service.
Product Information
More details of c purlin machine are shown as follows.
Bottom reinforcement steel roll forming machine for elevators
Application
Other profiles
Specification
|
Serial number
|
composition
|
data
|
|
1
|
Manual Decoiler
|
Max. bearing load capacity 3000kg
|
|
2
|
Leveler
|
1 set
|
|
3
|
Sensor racks
|
2 set
|
|
4
|
Hydraulic punching unit
|
7 stations
|
|
5
|
Cold roll forming integral machine
|
1 set
|
|
6
|
Cutting device
|
1 Set
|
|
7
|
Hydraulic system
|
5.5KW
|
|
8
|
PLC automatic control equipment
|
Famous brand
|
Production process
Decoiling→ Roll Forming →Straightening → servo feeding → punching → roll forming → automatic cutting → unloading
|
Condition
|
New
|
|
Production Capacity
|
0-8m/min
|
|
Place of Origin
|
China,Guangdong
|
|
Brand Name
|
Liding
|
|
Voltage
|
380V 50Hz 3phases
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
High-accuracy
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Product name
|
Full Auto Omega Profile Channel roll forming machine
|
|
Roller material
|
cr12mov
|
|
Cutting blade material
|
CR12mov
|
|
Transmission
|
Gear
|
Main parameters
1 Main motor power 11KW
2 Transmission form Gear, chain
3 Rolling speed 0-8M/min
4 Maximum feeding width 250mm
5 Rolling mold material Cr12
6 Rolling mold heat treatment hardness HRC58-62
7 Mold surface roughness Ra0.8
8 Roller shaft material, diameter 40Cr, φ60
9 roller groups: 18+5
10 mold life ≥1.6 million meters
11 Residue recovery method Filter collection
12 Rolling mold replacement method Overall lifting, positioning pin fixed

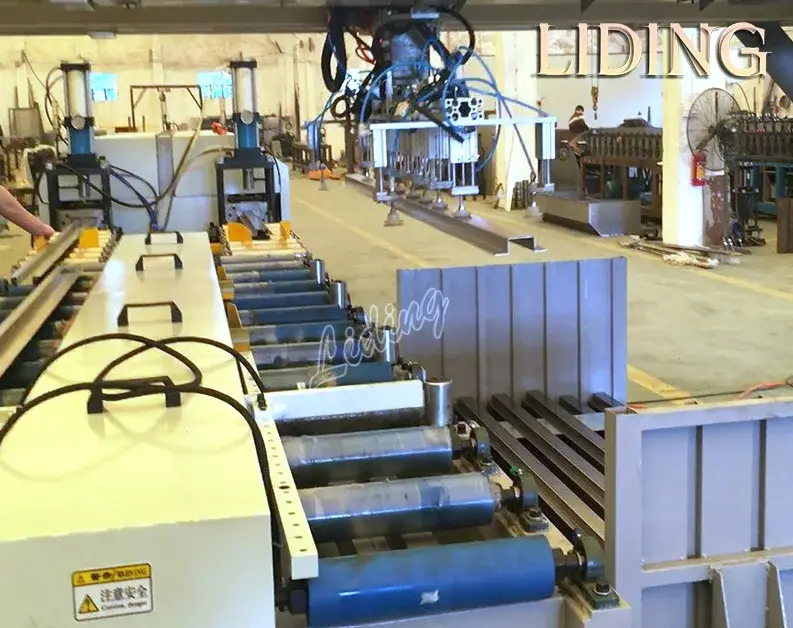

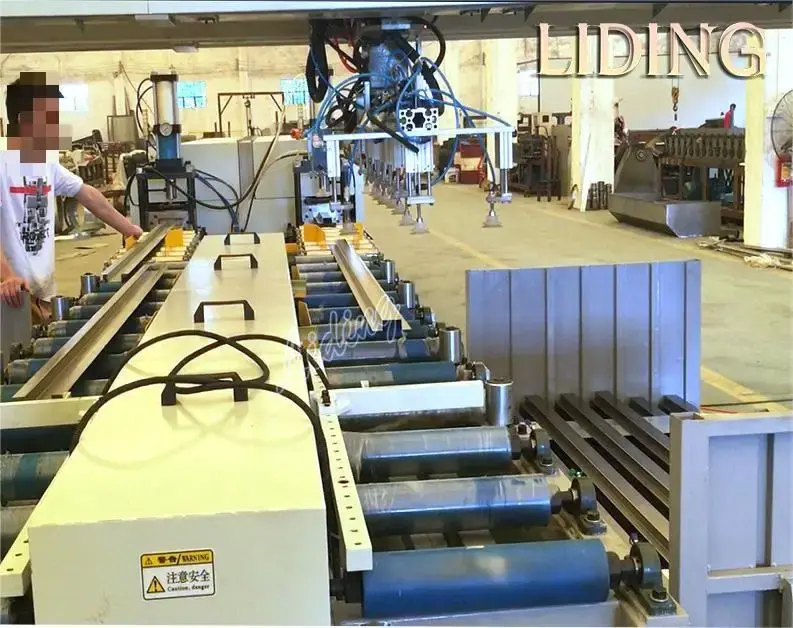

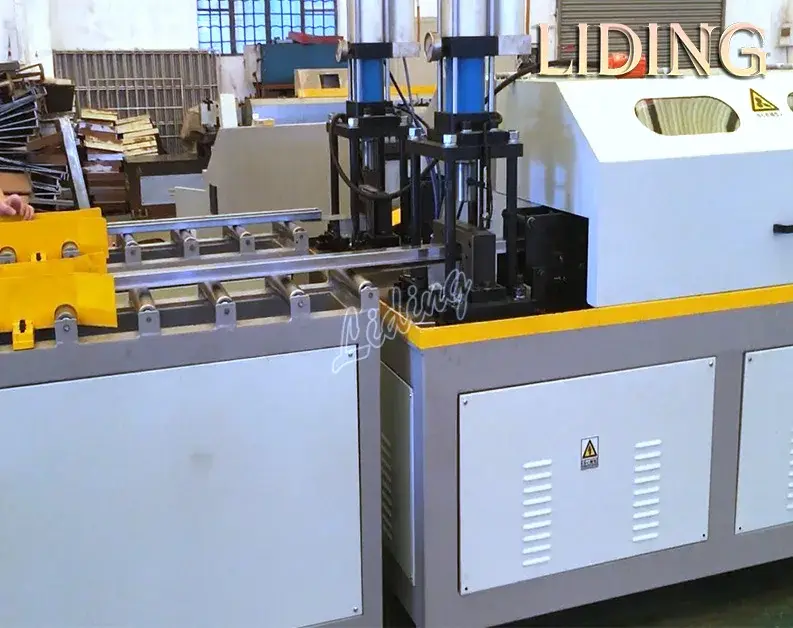

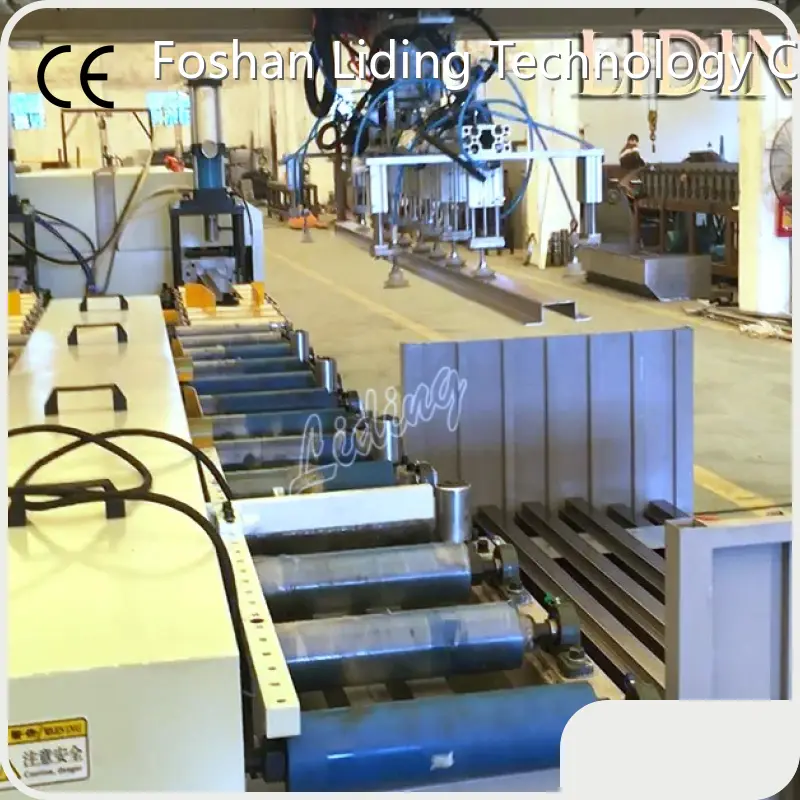

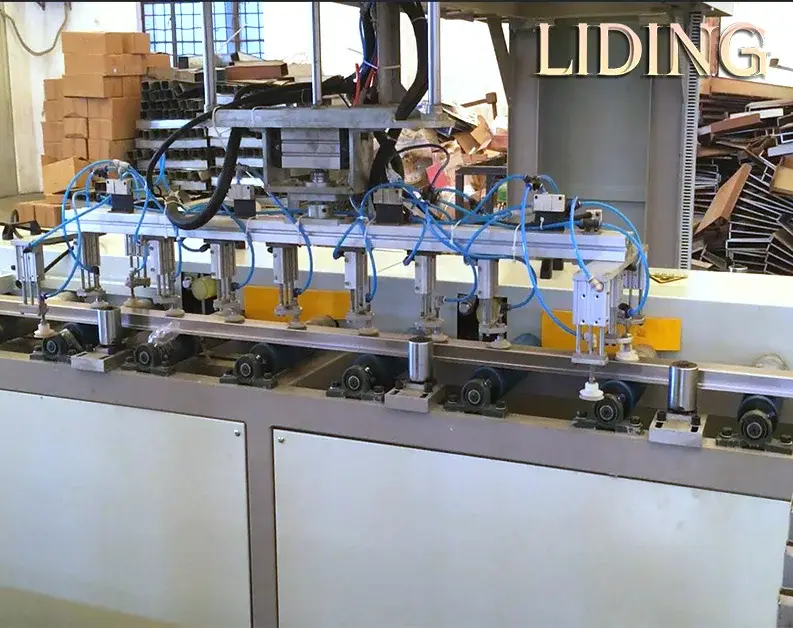

Product display
Company Introduction
With the main focus on the production of Air Duct flange Roll forming machine,Fire damper production line,HAVC Air duct line,C/U/Z purlin forming machine,Storage Shelf roll forming machines, 佛山市立鼎科技有限公司 is a enterprise in fo shan. In the future, our company will continuously abide by the business philosophy of 'honest and law-abiding, cooperative and win-win'. Based on the service tenet of 'credit first, customers first', we wholeheartedly provide the vast number of customers with quality products and services. Foshan Liding Technology Co.,ltd has a research and development team consisting of professional technical developers. We develop and design products with innovative research and development concepts to ensure that every step of the product from design, development to production is professional and efficient. We listen carefully to customer's requests and provide targeted solutions based on the bottleneck of customer. Therefore, we can help our customers to better solve problems.
With years of experience in production, we guarantee our product quality so you can purchase them with confidence. Feel free to contact us!
