Factory Direct Metal Stud Roll Forming Machine for Sale Factory Price for Factory
Product details of the metal stud roll forming machine for sale
Product Specification
Core Components: Pressure vessel, Motor, Bearing, Gear, Gearbox, PLC
Machinery Test Report: Provided
Roller material: Cr12mov
Advantage: Mutifunctional
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Restaurant, Construction works
Product Introduction
Liding Machine metal stud roll forming machine for sale has an appearance design that follows the market trend. A good quality control system and management system ensure the quality of the product. Our quality products have a large reputation in the market.
Product Description
Manual width-adjusting U-beam forming machine
Manual width-adjusting
Production process
Decoiling——8 Stations (manual width adjustment 30/40/50)——hydraulic cutting ——Run-out Table
Composition of auto machine production line
|
Serial number
|
composition
|
data
|
|
1
|
Manual Decoiler
|
Max. bearing load capacity 1000kg
|
|
2
|
Cold roll forming integral machine
|
8 stations (manual width adjustment 30/40/50)
|
|
3
|
Cutting device
|
1 Set
|
|
4
|
Hydraulic system
|
2.2KW
|
|
5
|
PLC automatic control equipment
|
2500/pulse encoder
With Touch human-machine interface
|
|
6
|
Finished product rack(Run-out table)
|
4m
|
Profile
Specification
|
Condition
|
New
|
|
Production Capacity
|
0-8m/min
|
|
Place of Origin
|
China,Guangdong
|
|
Brand Name
|
Liding
|
|
Voltage
|
380V 50Hz 3phases
|
|
Dimension(L*W*H)
|
4000*1000*1150mm
|
|
Weight
|
3200kg
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
High-accuracy
|
|
Rolling thinckness
|
0.8mm
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Product name
|
U30/40/50 Channel Steel Cold Purlin roll forming machine
|
|
Roller material
|
cr12mov
|
|
Cutting blade material
|
CR12mov
|
|
Servo motor
|
4kw+2.2kw
|
|
Transmission
|
Gear
|

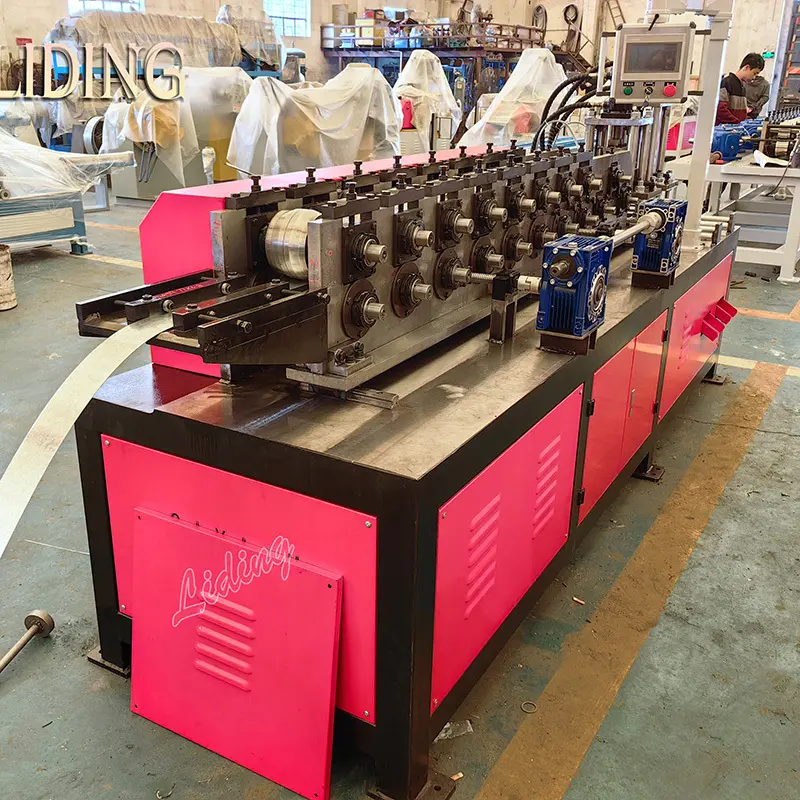

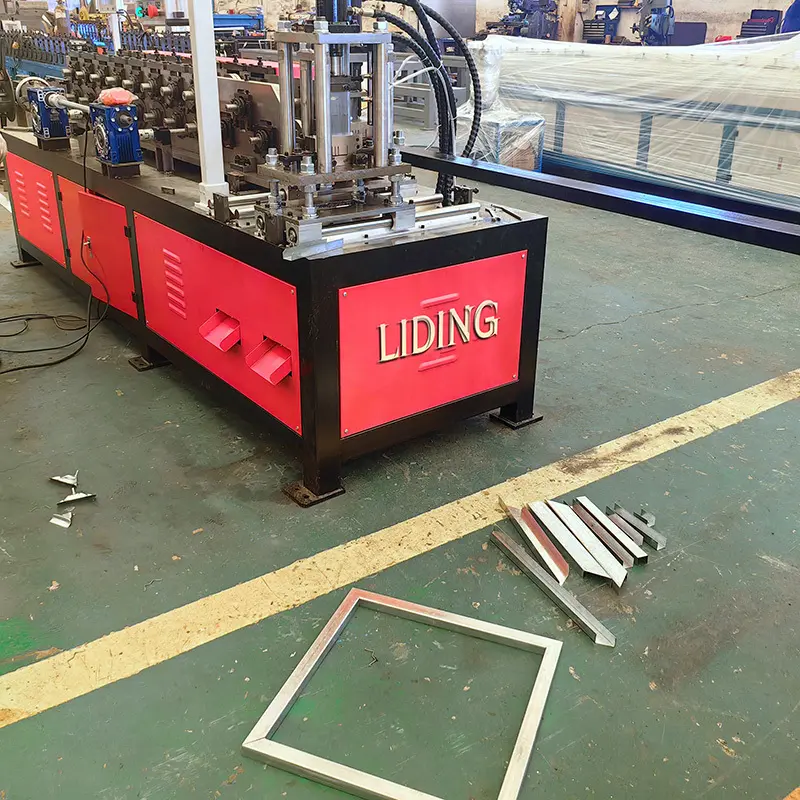

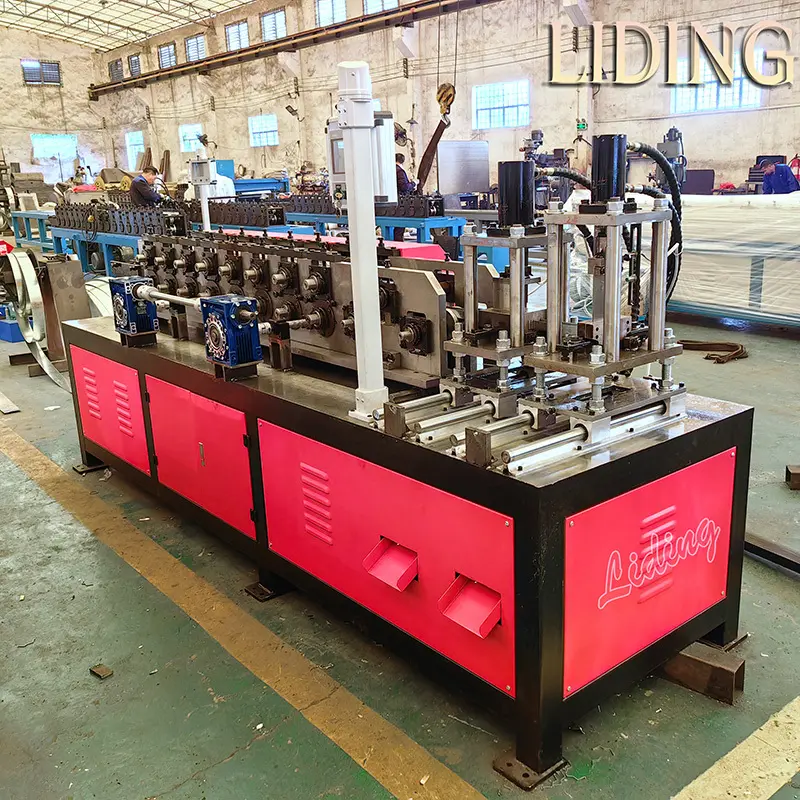

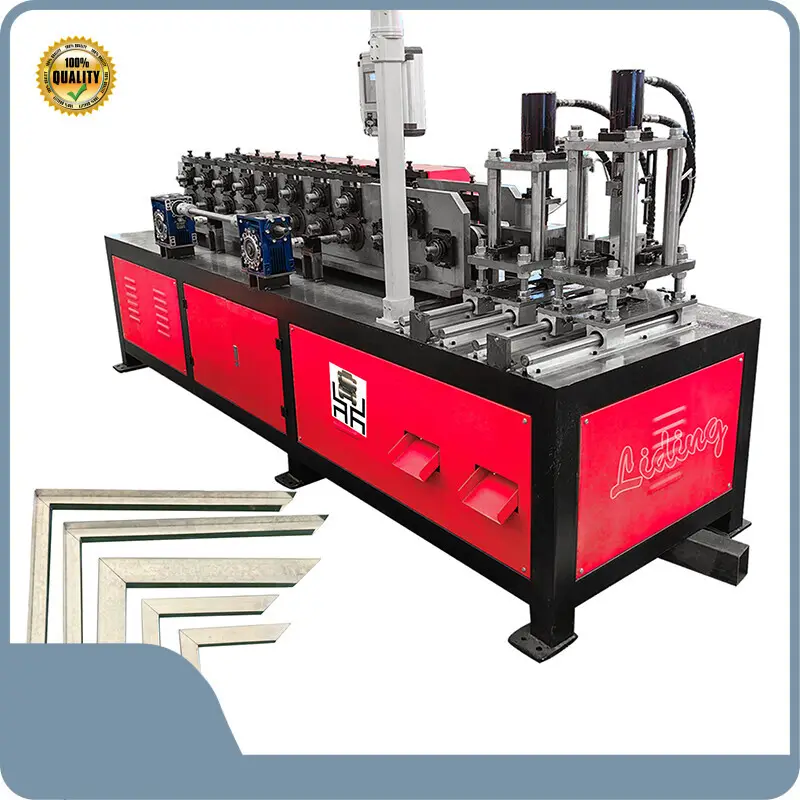

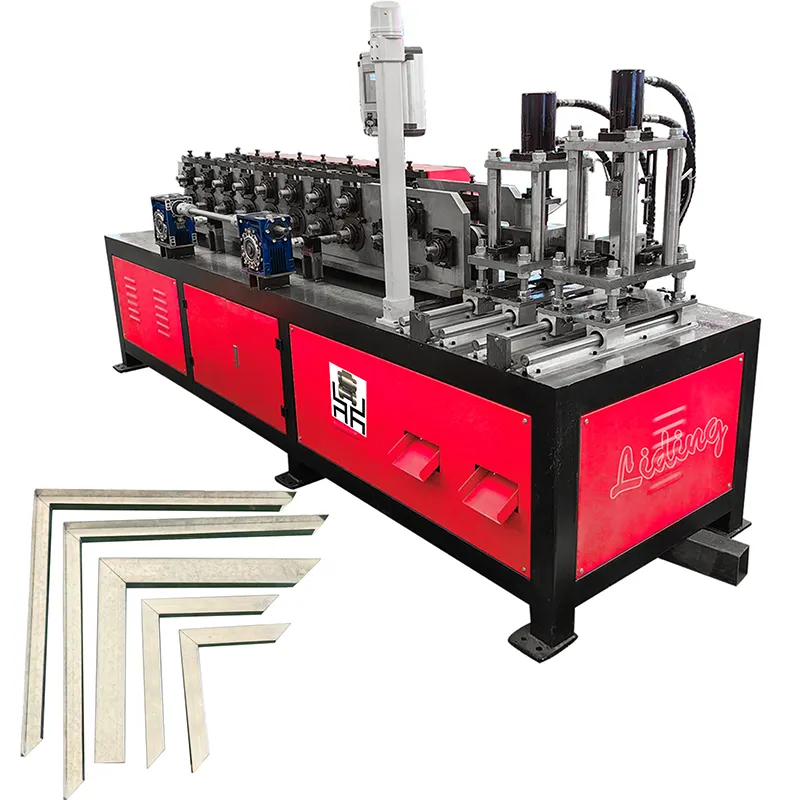

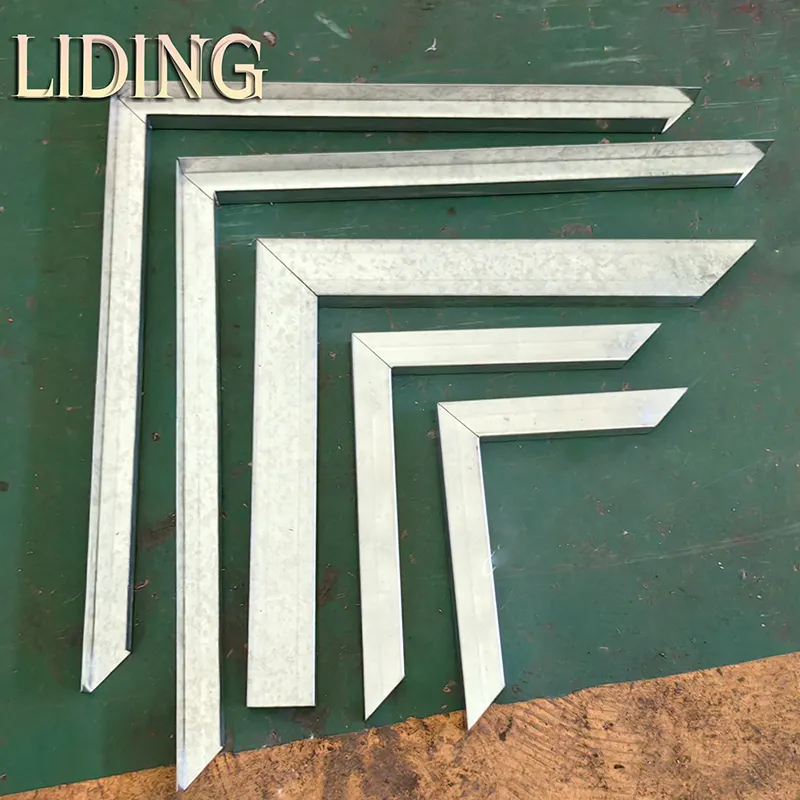

Product display
Company Advantage
• Traffic convenience including easy and open highway access and the great geographic location is conducive to the transportation of Air Duct flange Roll forming machine,Fire damper production line,HAVC Air duct line,C/U/Z purlin forming machine,Storage Shelf roll forming machines.
• Foshan Liding Technology Co.,ltd focuses on interacting with customers to know well their needs and provides them with efficient pre-sales and after-sales services.
• Foshan Liding Technology Co.,ltd's product sales network is spread all over the world.
• Foshan Liding Technology Co.,ltd's elite teams are comprised of passionate and excellent staff who make a great contribution to corporate development.
No more hesitation, contact Foshan Liding Technology Co.,ltd now and get a complete custom solution for free!
