Product details of the elbow cold forming machine
Product Information
The production technology of Liding Machine elbow cold forming machine is constantly updated, and thus production efficiency is guaranteed. Thanks to the adoption of high technology, its quality is ensured. This product has long service life and excellent performance. From selecting raw materials to the elbow cold forming machine production, Liding Machine strictly controls the standard process.
Profile
Application
Workflow
Electric decoiling and leveling feed - servo feed - punching and punching teeth - cold roller forming - hydraulic cutting - unloading - finish
Composition of the machine
the whole line is about 24 meters long
● Electric leveling Decoiler(2T),1 set
● Servo feeder,1 set
● Hydraulic punching machine,1 set
● Punching molds (41*21, 41*41),2 sets
● Forming machine,1 set
● Hydraulic cut-off mold ,1 set
● Run-out table,1 set
● PLC control cabinet 1 set
Basic Configuration
Electric leveling Decoiler
● Bore diameter 460~520mm.
● Material width 300mm.
● Load weight 2000kg.
● Manual core expansion is used.
● With power transmission .
● Automatic control function.
NC precision electronic numerical control roller feeding machine
● Material width: 200mm.
● Material thickness: 3.0mm.
● Servo motor:AC1.8KW.
● Feeding speed: 10 meters/min.
Hydraulic punching machine 1 set, punching mold 2 sets
● Hydraulic working pressure:16MPA
● Hydraulic motor:7.5KW
● Material width 102-142mm.
● Material thickness 1.5-3.0mm.
● Mold material Cr12MoV.
Basic Configuration

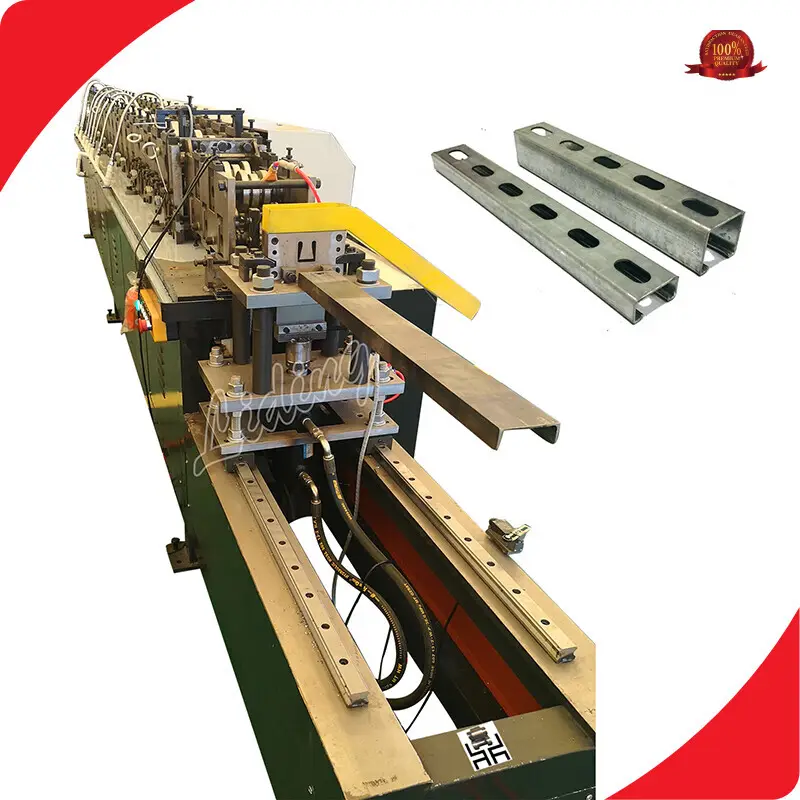

Molding machine
● Applicable materials: Cold or galvanized sheet metal
● Material thickness:1.5-3.0mm.
● Machine can produce 41*21, 41*41 two specifications, lifting forming module replacement specifications
● Main motor power: 22kw (two motors total 22kw).
● Forming speed: 0-6m/min.
● Bearing: NJ210E Bearing
● Number of forming groups: 21 groups (14 groups for replacement specifications)
● Shaft diameter and material: ¢58mm, 45# steel.
● Tolerance of cut length: 3m+-1.5mm, (cut between hole and hole).
● Transmission: Chain, gearbox steering transmission. (Main drive reduction gearbox: BWD4).
● Control system: PLC control.
● Machine net weight: about 8 tons .
● Voltage: 380V/ 3phase/ 50 Hz.
● Dimensions of forming machine: Approx. L*W*H 7m*1m*1.4m (Frame welded with steel pipe)
● Forming roll material: Cr12MoV.
● Cutting mold material: Cr12MoV Heat treatment HRC60-62℃.
Basic Configuration
Cutting off parts
● Equipped with a set of hydraulic system unit.
● With two sets of mold cut-off.
● Motor power 4 kW.
● Adopt cylinder control cut-off method.
● Adoption of non-stop cylinder jack cut-off method
Unloading
● Flat length 4 meters
● Flat table structure using square tube angle iron composition.
● Pneumatic automatic unloading is adopted.
PLC computer control box
● Voltage: 380 V, 50 Hz, 3Phase
● Automatic length measurement of punched holes: servo motor
● Automatic measurement: encoder
● Control the length and quantity with PLC. The machine automatically cuts the length and stops when the required quantity is reached.
● Length can be modified
● Control panel: push-button switches, touch screen
