Product details of the elbow cold forming machine
Product Description
Liding Machine elbow cold forming machine is available in a variety of design styles and specifications. With the functions that meet user need, the product has a good practical value. Our warranty time for elbow cold forming machine is as long as many years.
Main parameters
Mainframe
① Rolling material Galvanized sheet
② Rolling wheel 18 sets
③ Rolling wheel material GCr15 steel
④ Rolling wheel heat treatment HRC55°~57°
⑤ Rolling wheel spindle diameter 40mm, material 45# steel.
⑥ Rolling wheel bearing specification 45/35*20/6009
⑦ Thickness of plywood 40㎜
⑧ Transmission method Chain and Gear
⑨ Motor power 5.5 kW.
⑩ Forming speed 8m/min.
⑪ Voltage; 380V 50Hz
⑫Control party test: forward reverse stop
Material thickness GDF20 0.6-1.0mm
GDF30 0.8-1.2mm
Product specification: GDF20/GDF30
Product height: 20mm,30mm

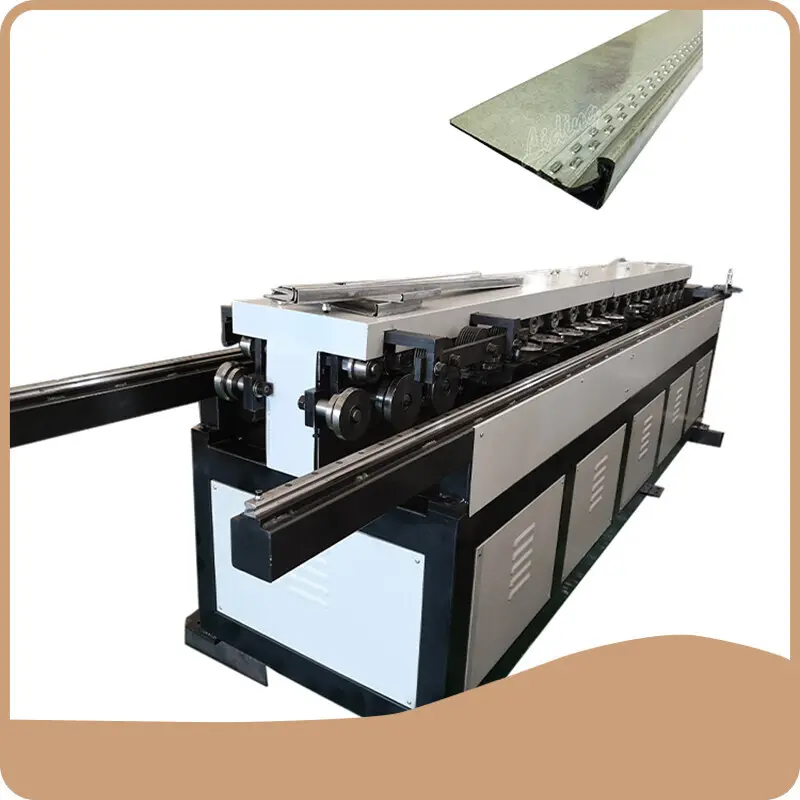

Product display
Company Advantage
• Since its inception in our company has a history of development for years. During this time, we have been continuously exploring new models and new roads in order to better adapt to the special environment in the historical exchange period.
• Our company has established trade relations with many countries around the world.
• We have our own team of professionals who use the industry experience accumulated over the years to guide the practice process and provide a guarantee for the production of high quality products.
• Foshan Liding Technology Co.,ltd keeps ourselves open to all feedback from customers with a sincere and modest attitude. We constantly strive for service excellence by improving our deficiencies according to their suggestions.
Foshan Liding Technology Co.,ltd is mainly engaged in Air Duct flange Roll forming machine,Fire damper production line,HAVC Air duct line,C/U/Z purlin forming machine,Storage Shelf roll forming machines. Our products are of top quality and favorable price. Feel free to contact us to order.
