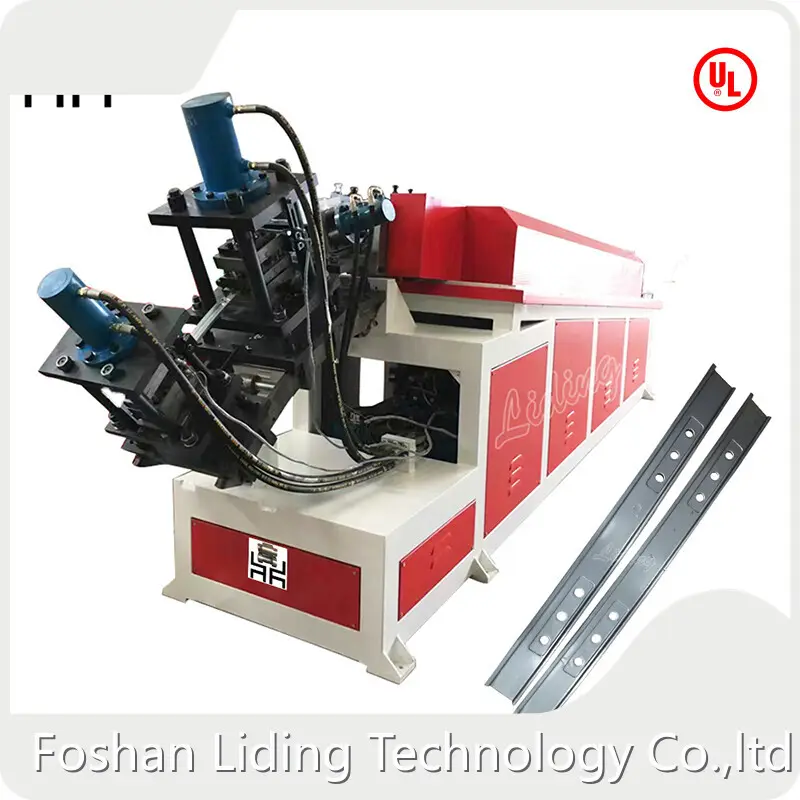

Cold Roll Forming Machinery for Industrial with Good Price
Composition of the machine
|
Configure |
Technical Parameters |
|
|
Electrical Decoiler |
Load capacity 1 ton |
|
|
Roll forming machine |
Main Machine frame |
Side board is made of 45#40mm steel plate |
|
Forming section |
14 groups rollers,Cr12mov steel, HRC up to 58~60º. |
|
|
Full Forming Section |
4 sets of main forming rolls for precision shaping |
|
|
Transmission section |
Reduction gearbox and gear transmission |
|
|
Punching and cutting section |
Composed of platform mold, stretching and cutting composite mold, three-cylinder hydraulic press and length measuring device. Punch material :DC53 |
|
|
Finished product collection box |
Used to take over the processed productions. |
|
|
Cooling circulation system |
The medium is emulsified oil |
|
|
Electric control system Security part |
Protection net, warning signs, manual emergency stop button,etc. |
|
Profile
Application
Workflow
Decoiling →Cold Roll Forming →Hydraulic punching→cutting at fixed length→collecting material
Composition of the machine
|
Item |
|
Technical Parameters |
|
Forming materials |
Material |
Cold Plate Material |
|
Material thickness |
1.0±0.02㎜ |
|
|
Inner diameter of the coil |
Ф460-Ф520 |
|
|
Processing capacity |
Main machine forming speed |
6pcs/min |
|
Processing length |
200-1000mm |
|
|
Processing Quality |
Dimensional accuracy |
±0.2㎜ when L≤500mm; |
|
Straightness; Disturbance; |
L≤500mm, curvature not more than ±0.2㎜; |
|
|
Dimensional requirements of forming section |
According to the drawing |
|
|
Surface quality |
No obvious wrinkles, unevenness, surface galvanizing layer abrasion and other defects |
Product display
Company Advantages
· The production of Liding Machine cold roll forming machinery adopts modern innovation concepts in consistence with industry trends.
· The quality of this product is guaranteed to withstand a variety of rigorous tests.
· This product is widely used in the global market due to its superiority.
Company Features
· With the massive advantage of high capacity, 佛山市立鼎科技有限公司 is expanding its production scale to meet the higher requirements for cold roll forming machinery.
· The company has its own self-supported import and export right, and we have been certified under quality standards stipulated in many countries. This means the company is allowed to export merchandises freely without customs issues.
· We are finding ways to partner with customers to design solutions. We have been focusing on establishing close partnerships with our clients so as to come up with the most ideal products. Ask!
Application of the Product
cold roll forming machinery of Foshan Liding Technology Co.,ltd can be used in various scenarios in different fields.
We are committed to meeting the need of our customers. We will go deeper into their situation and provide them with most suitable solutions.
