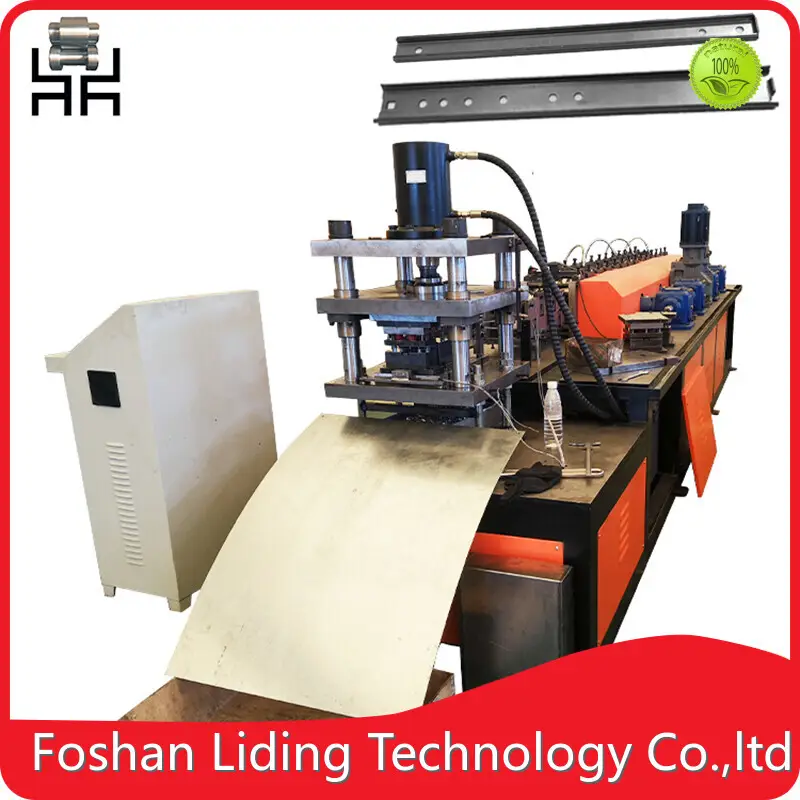

Product details of the cold forming machine
Product Introduction
These unique ideas, styles, and design features will add personality to your cold forming machine. It is produced under a strict internal quality control regime. Our company mission for cold forming machine is that quality and service go side by side.
Composition of the machine
|
Configure |
Technical Parameters |
|
|
Manual Decoiler |
Load capacity 1 ton |
|
|
Roll forming machine |
Main Machine frame |
Side board is made of 45# 30mm steel plate |
|
Forming section |
12 groups rollers,Cr12mov steel, HRC up to 58~60º. |
|
|
Full Forming Section |
4 sets of main forming rolls for precision shaping |
|
|
Transmission section |
Reduction gearbox and gear transmission |
|
|
Punching and cutting section |
Composed of platform mold, stretching and cutting composite mold, single-cylinder hydraulic press and length measuring device. Punching material :DC53 |
|
|
Finished product collection box |
Used to take over the processed productions. |
|
|
Cooling circulation system |
The medium is emulsified oil |
|
|
Electric control system Security part |
Protection net, warning signs, manual emergency stop button,etc. |
|
Profile
Other type:Two-piece Guide Slide machine
Workflow
Decoiling - Cold Roll Forming - Hydraulic Punching & Cutting - Unloading - Finishing
Composition of the machine
● Manual Decoiler ,2 set
● Rail forming main machines (Internal and external )，2 set
● Hydraulic system Mold,2 set
● Electric control device (touch screen, inverter, PLC, etc.)
Composition of the machine
|
Item |
|
Technical Parameters |
|
Forming materials |
Material |
Cold Plate Material |
|
Material thickness |
1.5±0.02㎜ |
|
|
Inner diameter of the coil |
Ф460-Ф520 |
|
|
Processing capacity |
Main machine forming speed |
12pcs/min |
|
Processing length |
200-1000mm |
|
|
Processing Quality |
Dimensional accuracy |
±0.2㎜ when L≤500mm; |
|
Straightness; Disturbance; |
When L≤500mm, curvature not more than ±0.2㎜; |
|
|
Dimensional requirements of forming section |
According to the drawing |
|
|
Surface quality |
No obvious wrinkles, unevenness, surface galvanizing layer abrasion and other defects |
Product display
