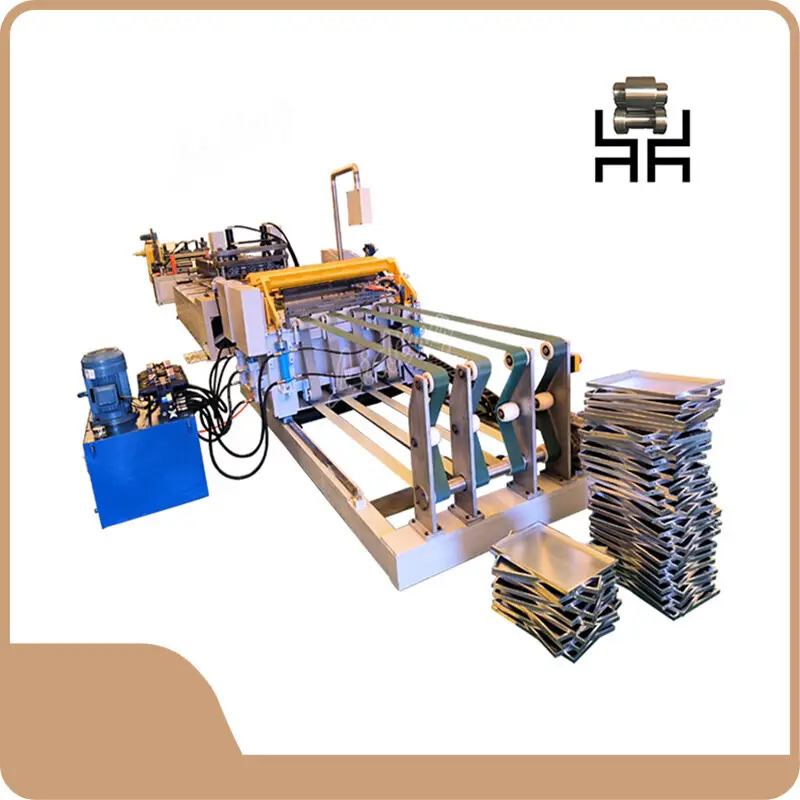

Cheapest Purlin Machine Supplier Price List
Product details of the purlin machine supplier
Quick Detail
Liding Machine purlin machine supplier is elaborately designed by professional design team. The product has good quality and excellent performance. The purlin machine supplier produced by our company is widely used in various industries and fields. purlin machine supplier is optimized to maximize profits, and at the same time minimize the impact of business operations on the environment.
Product Description
The specific details for purlin machine supplier of Foshan Liding Technology Co.,ltd are mainly reflected in the following aspects.
Composition of the machine
● Electric Decoiler,1 set
● Leveling Machine,1 set
● Feeding punching machine,1 set
● Roll rolling machine&Cutting mold,1 set
● Transition belt line,1 set
● Front and rear end bending machine,1 set
● Pneumatic system,1 set
● Electric control system,1 set
Basic Configuration
Electric Decoiler
● Max. width 600mm
● Motor power:3kw
● Maximum load capacity 5 tons
● Inner hole diameter 450*520mm
● Max. diameter 1300mm
Leveling machine
● Host structure: overall profile 100*80 steel plate welding
● Servo drive motor: 1.5KW servo motor
● Motor speed control: servo drive control
Feeding punching machine
● Length measurement control: closed loop feedback
● Roll material: 45# steel quenched, finely ground, chrome plated
● Roll diameter :φ75mmΧ600mm
● Die material: Cr12MOV
● Number of dies: 2 sets (2 sets of punching round holes and square ports)
● Number of cylinders: 2 7. Punching angle device type: hydraulic control
Basic Configuration
Forming machine
● Number of roller groups: 16 pairs of forming wheels
● Width is automatically adjusted by servo system
● Rolling wheel using GCr15 quenching up to HRC58-60
The front and rear end bending machine
● Machine consists of front and rear bending units, hydraulic system, conveying system, top material system, positioning system and machine body.
● Belt movement is driven by motor reducer
● Positioning system includes end positioning and side positioning and other parts.
Workflow
Decoiling → leveling and feeding→punching & servo feeding→Limit→Roll forming→Cut-off flanging→Front-end bending→Back-end bending
Profile
Product display
Company Information
佛山市立鼎科技有限公司 (referred to as Foshan Liding Technology Co.,ltd), is a company that mainly manages Air Duct flange Roll forming machine,Fire damper production line,HAVC Air duct line,C/U/Z purlin forming machine,Storage Shelf roll forming machines in the industry. With the belief of 'technology is the foundation of a company', our company formulates our technological development plan based on the strategic goals and development direction. Our talents are high in quality and rich in industry experience. They are the solid foundation for our company's long-term development. Before developing a solution, we will fully understand the market situation and customer's needs. In this way, we can provide effective solutions for our customers.
Our products are all qualified and are sold directly from factory. Welcome friends from all walks of life to contact and consult us.
