Bottom reinforcement steel roll forming machine for elevators
Application
Other profiles
Specification
|
Serial number
|
composition
|
data
|
|
1
|
Manual Decoiler
|
Max. bearing load capacity 3000kg
|
|
2
|
Leveler
|
1 set
|
|
3
|
Sensor racks
|
2 set
|
|
4
|
Hydraulic punching unit
|
7 stations
|
|
5
|
Cold roll forming integral machine
|
1 set
|
|
6
|
Cutting device
|
1 Set
|
|
7
|
Hydraulic system
|
5.5KW
|
|
8
|
PLC automatic control equipment
|
Famous brand
|
Production process
Decoiling→ Roll Forming →Straightening → servo feeding → punching → roll forming → automatic cutting → unloading
|
Condition
|
New
|
|
Production Capacity
|
0-8m/min
|
|
Place of Origin
|
China,Guangdong
|
|
Brand Name
|
Liding
|
|
Voltage
|
380V 50Hz 3phases
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
High-accuracy
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Product name
|
Full Auto Omega Profile Channel roll forming machine
|
|
Roller material
|
cr12mov
|
|
Cutting blade material
|
CR12mov
|
|
Transmission
|
Gear
|
Main parameters
1 Main motor power 11KW
2 Transmission form Gear, chain
3 Rolling speed 0-8M/min
4 Maximum feeding width 250mm
5 Rolling mold material Cr12
6 Rolling mold heat treatment hardness HRC58-62
7 Mold surface roughness Ra0.8
8 Roller shaft material, diameter 40Cr, φ60
9 roller groups: 18+5
10 mold life ≥1.6 million meters
11 Residue recovery method Filter collection
12 Rolling mold replacement method Overall lifting, positioning pin fixed

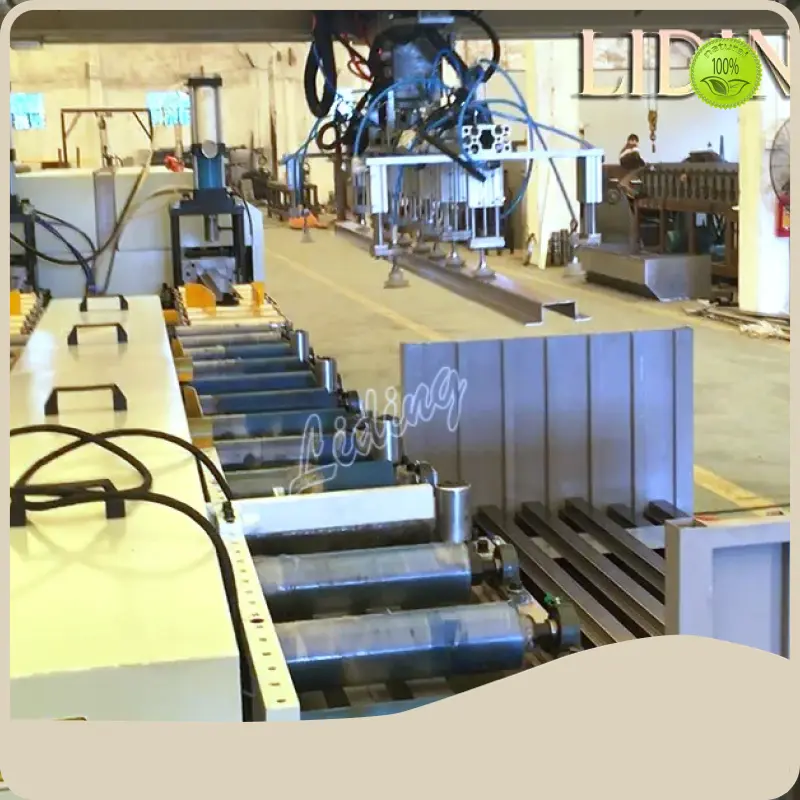

Product display
Company Advantages
· The whole production of Liding Machine c&z purlin forming machine is strictly supervised by professionals who have extensive experience in the industry.
· The quality of the product is assured as we are a reputed manufacturer in the industry.
· Strictly control the quality of c&z purlin forming machine is a indispensable step during its production.
Company Features
· Liding Machine has been specializing in producing c&z purlin forming machine for years of experience.
· A solid technical foundation is the key to 佛山市立鼎科技有限公司 greatly improving the quality of c&z purlin forming machine.
· We keep mission in mind to create better c&z purlin forming machine with our professional spirit. Please contact.
Application of the Product
c&z purlin forming machine can be applied to different industries, fields and scenarios.
We have a professional team and can provide customers with the most appropriate solutions to help customers achieve their goals quickly and effectively.
