C Purlin Roll Forming Machine Price - for Factory - Liding Machine
Composition of the machine
● Electric Decoiler,1 set
● Leveling Machine,1 set
● Feeding punching machine,1 set
● Roll rolling machine&Cutting mold,1 set
● Transition belt line,1 set
● Front and rear end bending machine,1 set
● Pneumatic system,1 set
● Electric control system,1 set
Basic Configuration
Electric Decoiler
● Max. width 600mm
● Motor power:3kw
● Maximum load capacity 5 tons
● Inner hole diameter 450*520mm
● Max. diameter 1300mm
Leveling machine
● Host structure: overall profile 100*80 steel plate welding
● Servo drive motor: 1.5KW servo motor
● Motor speed control: servo drive control
Feeding punching machine
● Length measurement control: closed loop feedback
● Roll material: 45# steel quenched, finely ground, chrome plated
● Roll diameter :φ75mmΧ600mm
● Die material: Cr12MOV
● Number of dies: 2 sets (2 sets of punching round holes and square ports)
● Number of cylinders: 2 7. Punching angle device type: hydraulic control
Basic Configuration
Forming machine
● Number of roller groups: 16 pairs of forming wheels
● Width is automatically adjusted by servo system
● Rolling wheel using GCr15 quenching up to HRC58-60

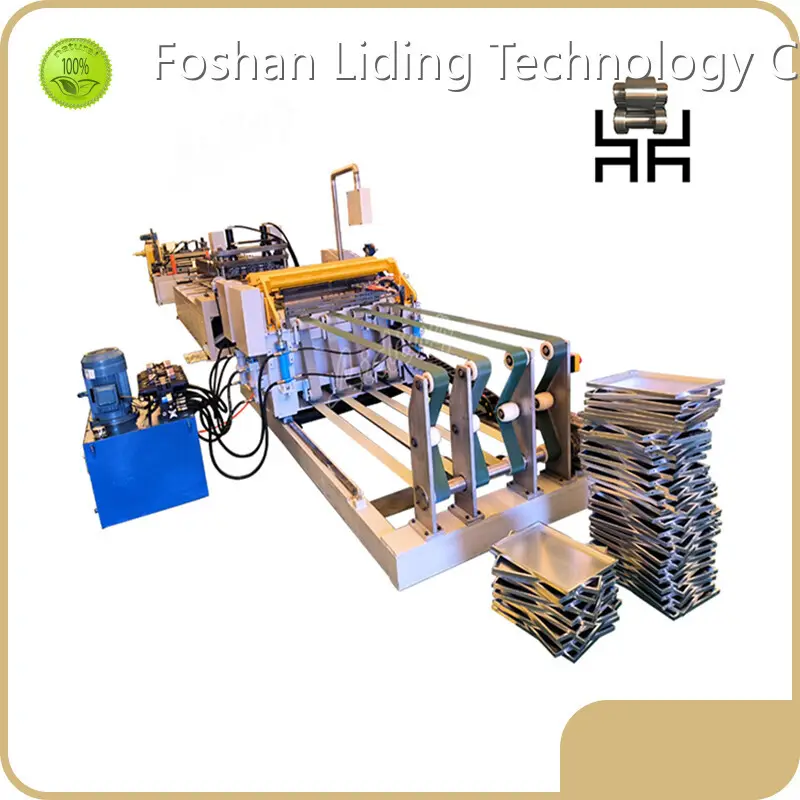

The front and rear end bending machine
● Machine consists of front and rear bending units, hydraulic system, conveying system, top material system, positioning system and machine body.
● Belt movement is driven by motor reducer
● Positioning system includes end positioning and side positioning and other parts.
Workflow
Decoiling → leveling and feeding→punching & servo feeding→Limit→Roll forming→Cut-off flanging→Front-end bending→Back-end bending
Profile
Product display
Company Advantages
· The design rolled out in c purlin roll forming machine price are really practical.
· This product conforms to the international market strict quality standard.
· This product is used by more and more people and has broad application prospects.
Company Features
· 佛山市立鼎科技有限公司 is a famous c purlin roll forming machine price manufacturer in China. Our reputation is built on integrity, talent and experience.
· 佛山市立鼎科技有限公司 has all kinds of sophisticated equipment and complete inspection instruments required for production.
· Being a responsible member of the global community has been woven into all aspects of our company culture. Our team works collaboratively with organizations to build awareness of environmental concerns and enhance environmental performance.
Application of the Product
Our c purlin roll forming machine price is available in a wide range of applications.
Foshan Liding Technology Co.,ltd has professional engineers and technicians, so we are able to provide one-stop and comprehensive solutions for customers.
