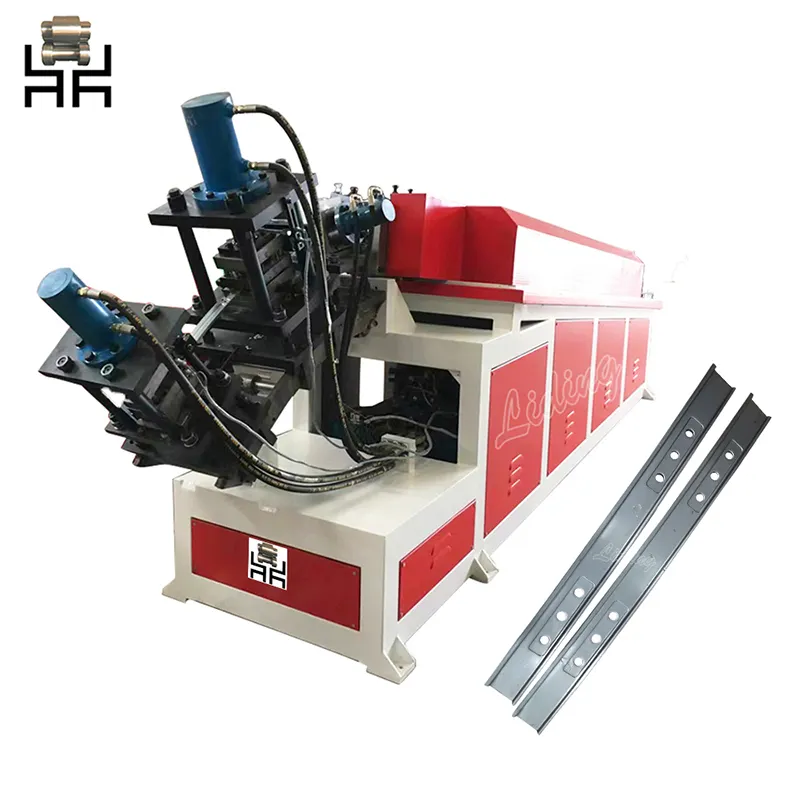

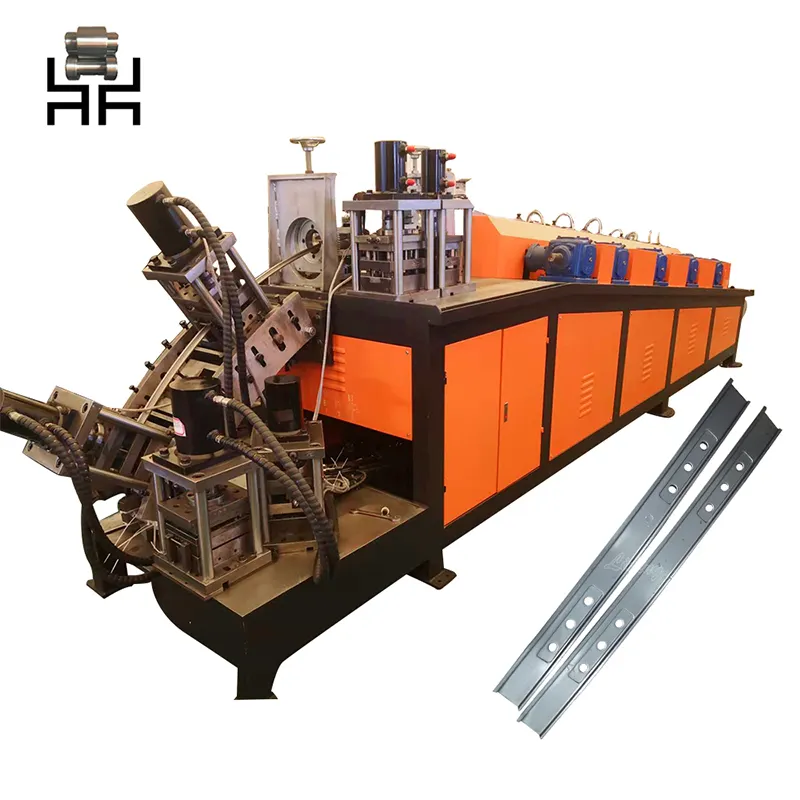

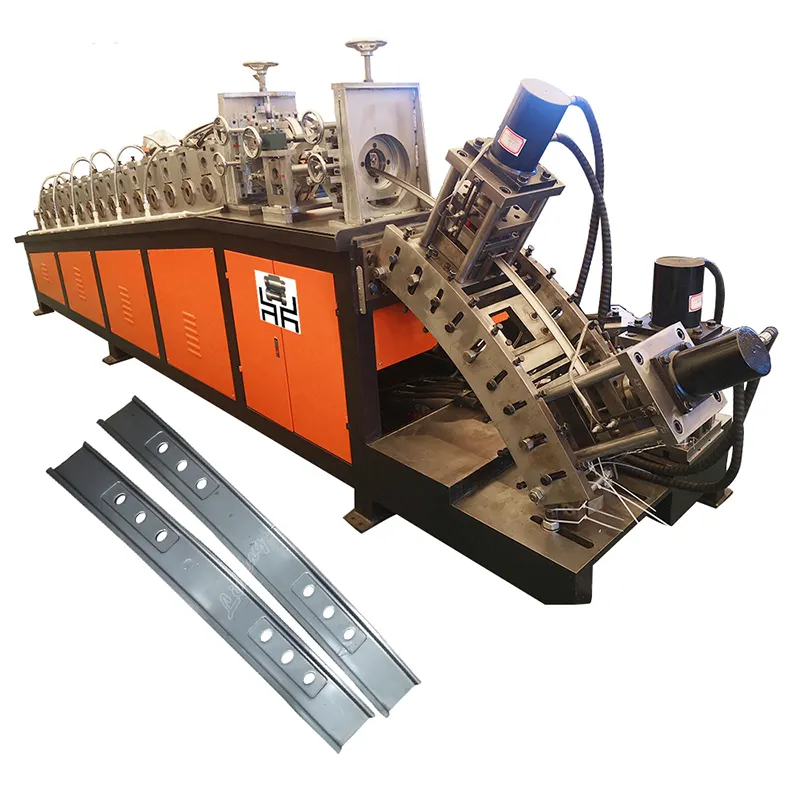

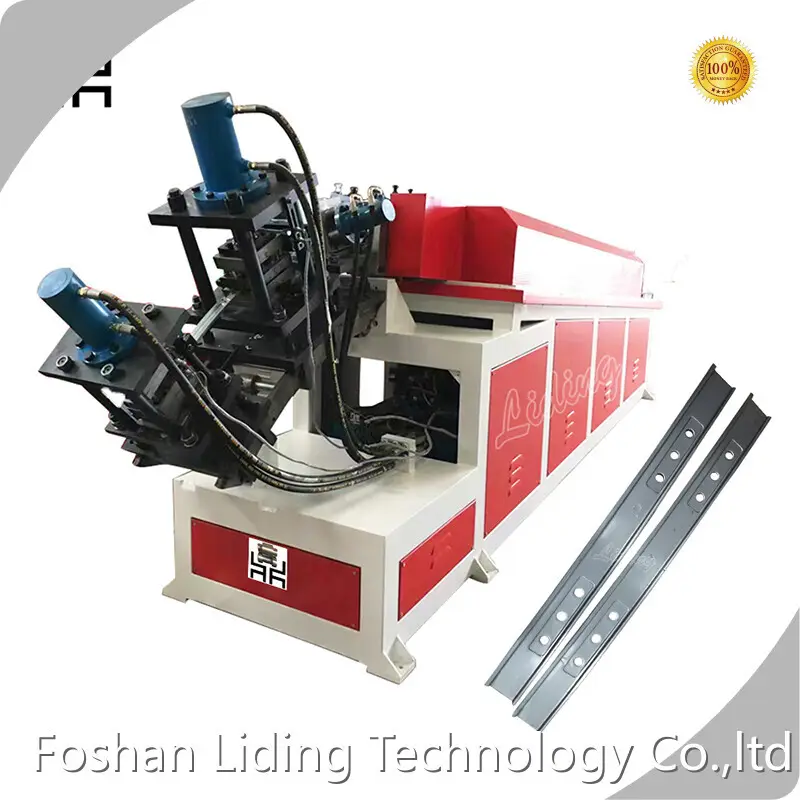

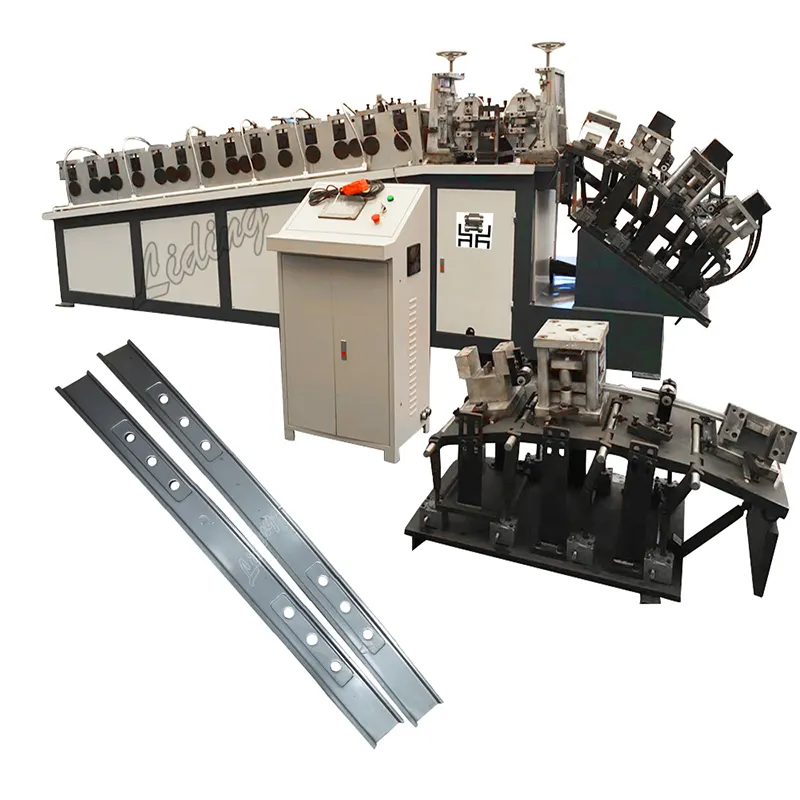

C Purlin Roll Forming Machine Personalized for Industrial Liding Machine
Product details of the c purlin roll forming machine
Product Information
What c purlin roll forming machine features is incredibly impressive. Liding Machine introduces an efficient quality management system to effectively guarantee its quality. What is crucial to 佛山市立鼎科技有限公司 is the quality of c purlin roll forming machine.
Composition of the machine
|
Configure |
Technical Parameters |
|
|
Electrical Decoiler |
Load capacity 1 ton |
|
|
Roll forming machine |
Main Machine frame |
Side board is made of 45#40mm steel plate |
|
Forming section |
14 groups rollers,Cr12mov steel, HRC up to 58~60º. |
|
|
Full Forming Section |
4 sets of main forming rolls for precision shaping |
|
|
Transmission section |
Reduction gearbox and gear transmission |
|
|
Punching and cutting section |
Composed of platform mold, stretching and cutting composite mold, three-cylinder hydraulic press and length measuring device. Punch material :DC53 |
|
|
Finished product collection box |
Used to take over the processed productions. |
|
|
Cooling circulation system |
The medium is emulsified oil |
|
|
Electric control system Security part |
Protection net, warning signs, manual emergency stop button,etc. |
|
Profile
Application
Workflow
Decoiling →Cold Roll Forming →Hydraulic punching→cutting at fixed length→collecting material
Composition of the machine
|
Item |
|
Technical Parameters |
|
Forming materials |
Material |
Cold Plate Material |
|
Material thickness |
1.0±0.02㎜ |
|
|
Inner diameter of the coil |
Ф460-Ф520 |
|
|
Processing capacity |
Main machine forming speed |
6pcs/min |
|
Processing length |
200-1000mm |
|
|
Processing Quality |
Dimensional accuracy |
±0.2㎜ when L≤500mm; |
|
Straightness; Disturbance; |
L≤500mm, curvature not more than ±0.2㎜; |
|
|
Dimensional requirements of forming section |
According to the drawing |
|
|
Surface quality |
No obvious wrinkles, unevenness, surface galvanizing layer abrasion and other defects |

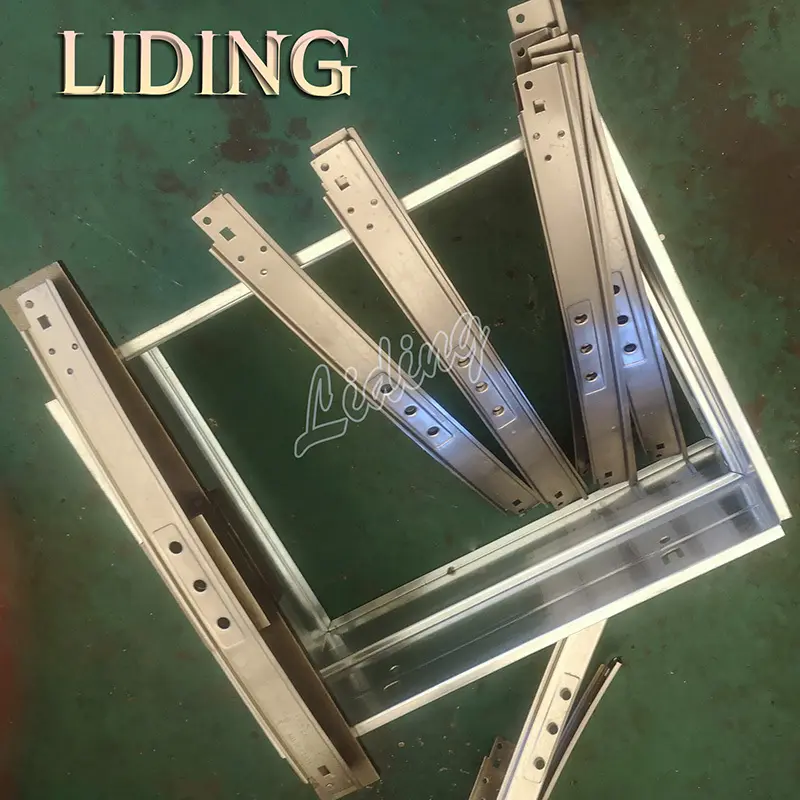

Product display
