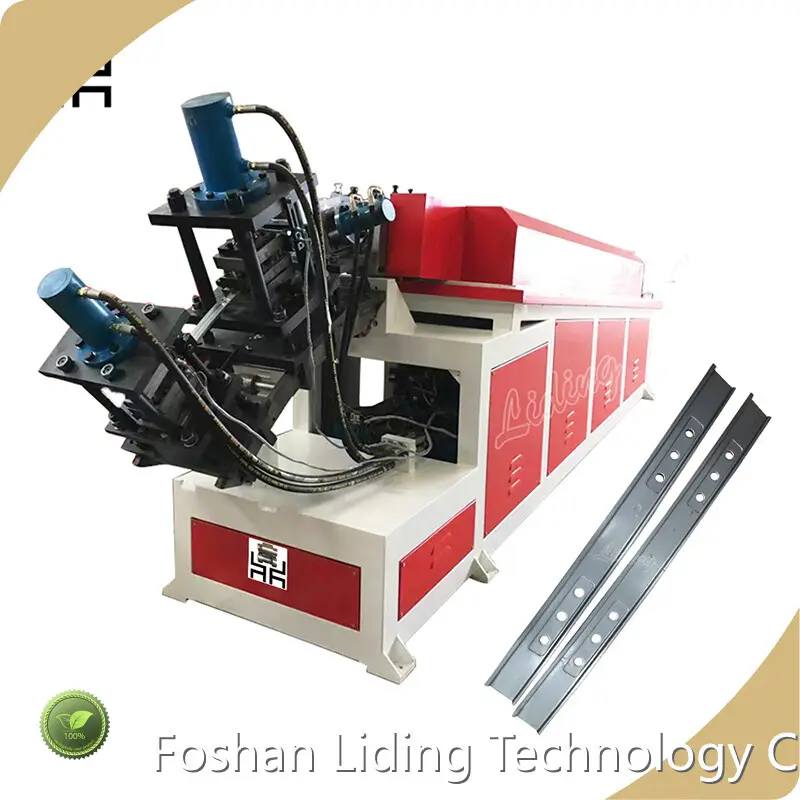

C Purlin Machine Liding Machine Company
Company Advantages
· The production of Liding Machine c purlin machine is ensured by cutting-edge technologies.
· Our products have been certified by many recognized standards, such as ISO quality standards.
· This product has won the favor of new and old customers at home and abroad.
Composition of the machine
|
Configure |
Technical Parameters |
|
|
Electrical Decoiler |
Load capacity 1 ton |
|
|
Roll forming machine |
Main Machine frame |
Side board is made of 45#40mm steel plate |
|
Forming section |
14 groups rollers,Cr12mov steel, HRC up to 58~60º. |
|
|
Full Forming Section |
4 sets of main forming rolls for precision shaping |
|
|
Transmission section |
Reduction gearbox and gear transmission |
|
|
Punching and cutting section |
Composed of platform mold, stretching and cutting composite mold, three-cylinder hydraulic press and length measuring device. Punch material :DC53 |
|
|
Finished product collection box |
Used to take over the processed productions. |
|
|
Cooling circulation system |
The medium is emulsified oil |
|
|
Electric control system Security part |
Protection net, warning signs, manual emergency stop button,etc. |
|
Profile
Application
Workflow
Decoiling →Cold Roll Forming →Hydraulic punching→cutting at fixed length→collecting material
Composition of the machine
|
Item |
|
Technical Parameters |
|
Forming materials |
Material |
Cold Plate Material |
|
Material thickness |
1.0±0.02㎜ |
|
|
Inner diameter of the coil |
Ф460-Ф520 |
|
|
Processing capacity |
Main machine forming speed |
6pcs/min |
|
Processing length |
200-1000mm |
|
|
Processing Quality |
Dimensional accuracy |
±0.2㎜ when L≤500mm; |
|
Straightness; Disturbance; |
L≤500mm, curvature not more than ±0.2㎜; |
|
|
Dimensional requirements of forming section |
According to the drawing |
|
|
Surface quality |
No obvious wrinkles, unevenness, surface galvanizing layer abrasion and other defects |
Product display
Company Features
· Based in China, 佛山市立鼎科技有限公司 has exceptional R&D and manufacturing abilities. We have been consistently recognized for our products, including quality c purlin machine.
· Our c purlin machine are made in accordance with international safety standard. Our c purlin machine is attractive contributing to the design and quality. Our c purlin machine supply is sufficient to guarantee demand owing to our advanced production line.
· We maintain trust by striving to deliver the best outcomes for our customers. We aim to operate with high standards of conduct and underpin our ability to serve our customers.
Product Details
Based on the production concept of 'detail determines result, quality creates brand', our company strives for excellence in every detail of products.
Product Comparison
Compared with similar products, the c purlin machine of Foshan Liding Technology Co.,ltd is more strict in the selection of raw materials. The specific aspects are as follows.
