Bepoke Hvac Machine Liding Machine Manufacture
Product details of the hvac machine
Product Information
The design concept of Liding Machine hvac machine is comparatively mature in the industry. The product, having gone through a proper testing phase, is excellent in performance. 佛山市立鼎科技有限公司 has established relatively complete quality management system for hvac machine.
Main features
Product specification: GDF20
Product height: 20mm
① Material thickness GDF20 0.6-0.8mm
(The size is subject to customer requirements)
Application: For air duct.
Mainframe
① Rolling material: Galvanized sheet
② Rolling wheel: 26 sets
③ Rolling wheel material: GCr15 steel
④ Rolling wheel: heat treatment HRC55°~57°
⑤ Rolling wheel spindle diameter: 40mm, material 45# steel.
⑥ Rolling wheel bearing specifications: Harbin 6009
⑦ Thickness of plywood: 40㎜
⑧ Transmission method: Chain and vector wheel
⑨ Motor power :7.5 kW.
⑩ Forming speed: 10m/min.
⑪ Voltage:380V 50Hz

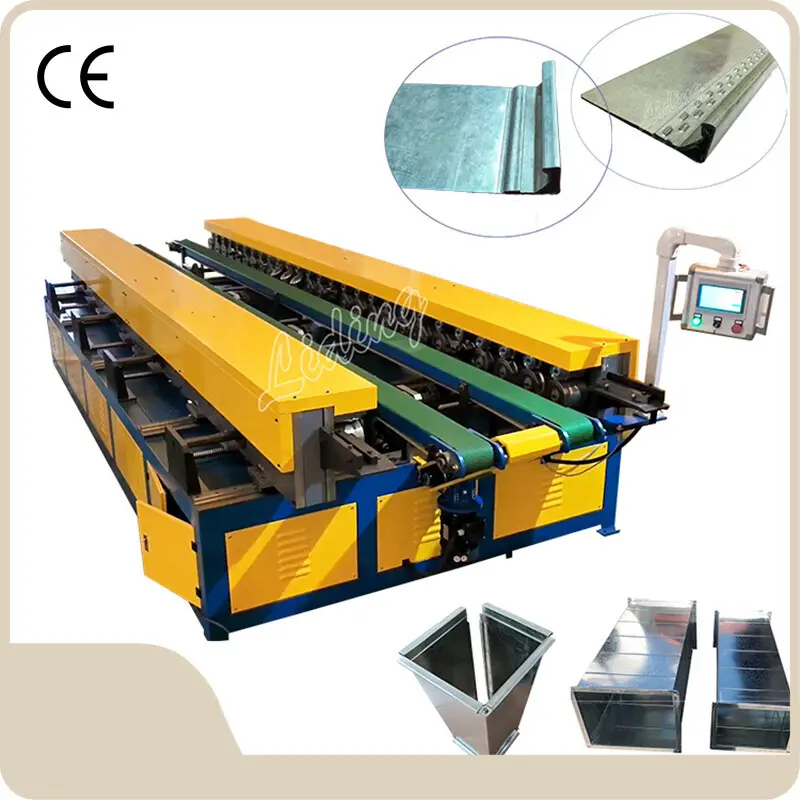

Product display
Company Feature
• Foshan Liding Technology Co.,ltd was incorporated in After years of trial and struggle, we have finally gained a foothold in the market .
• Our company has good natural conditions and a developed transportation network, laying a good foundation for the development.
• Foshan Liding Technology Co.,ltd's Air Duct flange Roll forming machine,Fire damper production line,HAVC Air duct line,C/U/Z purlin forming machine,Storage Shelf roll forming machines are not just popular among the domestic market. They are also exported to Southeast Asia, Europe, Africa, and other countries and regions.
Foshan Liding Technology Co.,ltd is a pharmaceutical company focused on integrity and credit. Air Duct flange Roll forming machine,Fire damper production line,HAVC Air duct line,C/U/Z purlin forming machine,Storage Shelf roll forming machines are of reliable quality and reasonable price. If needed, feel free to contact us.
