Product Specification
Product name: Automatic 2 in 1 steel frame c u cold roll forming
Roller material: Cr12mov
Showroom Location: None
Cutting type: Hydraulic Cutting
Product Information
佛山市立鼎科技有限公司 keeps close eyes on customers' needs and pays great attention on design of for industrial. An optimal system is established in order to satisfy customer demands 100%. Having paid much attention to the quality of for industrial, 佛山市立鼎科技有限公司 is more confident in this industry.
Product Description
C Profile Air Blower Base roll forming machine
2-in-1 C profile machine: 2 profile production available as an option
Production process
Powerless uncoiling - servo flat feed -hydraulic punching round hole & punching square hole mold (4 sets), cut off the tail material - cold roll forming - cut off - cut off folding - finish
|
Serial number
|
composition
|
data
|
|
1
|
Manual Decoiler
|
Max. bearing load capacity 2000kg
|
|
2
|
Servo leveling feeder
|
Feeding speed: 15 meters / min
|
|
3
|
Hydraulic punching machine
|
25-ton cylinder hydraulic station with a power of 7.5kw
|
|
4
|
Punching mold, 4 sets
|
Mold material CR12MOV
|
|
5
|
Tail material cutting mold
|
1 set
|
|
6
|
Cold roll forming machine
|
15 stations
|
|
7
|
Forming and cutting mold
|
material Cr12MOV
|
|
8
|
Cutting and folding mold
|
material Cr12MOV
|
|
9
|
Hydraulic system
|
7.2KW
|
|
10
|
PLC automatic control equipment
|
Adopt Panasonic PLC, human-machine interface control, and domestic inverter for speed regulation.
|
Application
Machine-produced profiles for blower bases.
Specification
|
Condition
|
New
|
|
Production Capacity
|
0-8m/min
|
|
Place of Origin
|
China,Guangdong
|
|
Brand Name
|
Liding
|
|
Voltage
|
380V 50Hz 3phases
|
|
Dimension(L*W*H)
|
6000*800*1200mm
|
|
Weight
|
4000kg
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
High-accuracy
|
|
Rolling thinckness
|
2.0-2.5mm
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Product name
|
C Profile Air Blower Base roll forming machine
|
|
Roller material
|
cr12mov
|
|
Cutting blade material
|
CR12mov
|
|
Servo motor
|
7.5kw+7.5kw
|
|
Transmission
|
Chain & gear transmission.
|
Basic Configuration
Electric Decoiler
● Bore diameter 460~520mm.
● Material width 300mm
● Load weight 2000kg
● Quantity: One.
● Manual Expansion
PLC computer control cabinet
● Voltage: 380 V, 50 Hz, 3Phase
● Automatic length measurement of punched holes: servo motor
● Adopt Panasonic PLC, human-machine interface control, and domestic inverter for speed regulation.
● The main electrical parts adopt Schneider and Shihlin products.
● The length of the encoder using the internal control encoder counts the length of the way
● Electronic control box adopts fully sealed ventilation cooling device.
● Adopt shutdown cut-off mode
NC numerical control Leveling & feeding machine
● Material width: 200mm
● Maximum thickness of material: 2.5mm
● Flat feed shaft 11 rollers
● Servo motor: AC1.5KW
● Feeding speed: 15 meters / min
Punching mold,4set
● Width of material: unspecified
● SMaterial thickness 2.0-2.5mm
● Mold material CR12MOV
● Hydraulic system: a set of 25-ton cylinder hydraulic station with a power of 7.5kw;
Forming machine
● Applicable materials: Cold or galvanized sheet metal
● Material thickness: 0-2.5mm
● Main motor power: 5kw
● Molding speed: 0-8m/min
● Number of molding groups: 15 groups
● Shaft diameter and material:¢ 56mm, 45# steel
● Great wall type plywood: plate thickness 25mm
● Transmission: Chain & gear transmission.
● Control system: PLC control
● Machine net weight: about 4 tons
● Voltage: 380V/ 3phase/ 50 Hz
● Dimensions of molding machine: L*W*H 6m*0.8m*1.2m
● Forming roll material: Cr12MoV
Cutting off parts
● Adopt online fiber optic detection to cut off the machine.
● Cut off mold 1 set, material Cr12MOV
● Cutting and forming mold 1 set

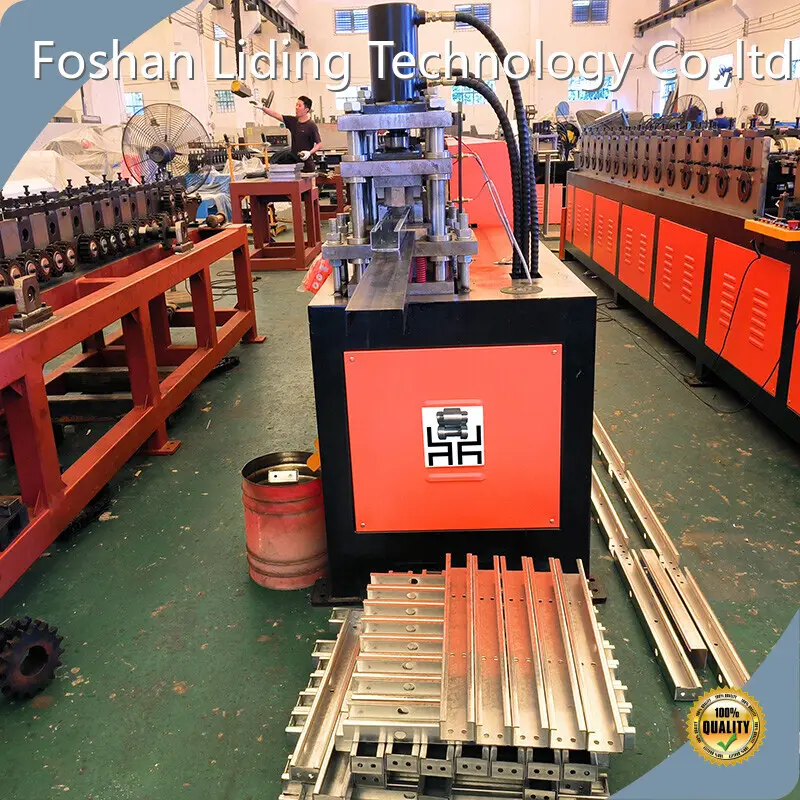

Product display
