Cold Purlin Roll Forming Machine For Fire Damper - Liding Machine
5.0
like
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
MOQ:
1000
Lead Time:
1-2(sets):35(days),>2(sets):To be negotiated(days)
Customization:
Customized logo (Min. Order: 1 sets),Customized packaging (Min. Order: 1 sets),Graphic customization (Min. Order: 1 sets)
Brand Name:
Liding
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
After Warranty Service
Video Technical Support
Advantage
Mutifunctional
Usage
Steel Construction
Use
Fire damper
Tile Type
Steel
Shaft material
45# High Grade Steel
Rolling thinckness
0.6-1.0mm
Roller stations
8 Stations
Roller material
Cr12mov
Raw material
Galvanized Coil
Feeding width
200mm
Weight
3200 kg
Warranty of core components
1 Year
Warranty
1 Year
Voltage
380V or as required
Video outgoing-inspection
Provided
Type
roll forming machine
Showroom Location
None
Production Capacity
0-8m/min
Product name
Channel Roll Forming Machine
Place of Origin
Guangdong
Marketing Type
Hot Product 2021
Machinery Test Report
Provided
Key Selling Points
Multifunctional
Dimension(L*W*H)
4*1.0*1.2m
Cutting blade material
Cr 12 High Grade Steel
Core Components
Pressure vessel, Motor, Bearing, Gear, Gearbox, PLC
Condition
New
Applicable Industries
Hotels, Building Material Shops, Manufacturing Plant, Restaurant, Construction works
After-sales Service Provided
Engineers Avaliable
Youtube Video List
Recommended Products
Product Description
Manual width-adjusting U-beam forming machine
Manual width-adjusting
m5110/17056088835c5f07.png
m5110/1705608883447862.png
Production process
Decoiling——8 Stations (manual width adjustment 30/40/50)——hydraulic cutting ——Run-out Table
Composition of auto machine production line
|
Serial number
|
composition
|
data
|
|
1
|
Manual Decoiler
|
Max. bearing load capacity 1000kg
|
|
2
|
Cold roll forming integral machine
|
8 stations (manual width adjustment 30/40/50)
|
|
3
|
Cutting device
|
1 Set
|
|
4
|
Hydraulic system
|
2.2KW
|
|
5
|
PLC automatic control equipment
|
2500/pulse encoder
With Touch human-machine interface
|
|
6
|
Finished product rack(Run-out table)
|
4m
|
Profile
m5110/1705608882399453.png
m5110/17056088829905a3.png
m5110/170560888231a60b.png
Specification
|
Condition
|
New
|
|
Production Capacity
|
0-8m/min
|
|
Place of Origin
|
China,Guangdong
|
|
Brand Name
|
Liding
|
|
Voltage
|
380V 50Hz 3phases
|
|
Dimension(L*W*H)
|
4000*1000*1150mm
|
|
Weight
|
3200kg
|
|
Warranty
|
1 Year
|
|
Key Selling Points
|
High-accuracy
|
|
Rolling thinckness
|
0.8mm
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Product name
|
U30/40/50 Channel Steel Cold Purlin roll forming machine
|
|
Roller material
|
cr12mov
|
|
Cutting blade material
|
CR12mov
|
|
Servo motor
|
4kw+2.2kw
|
|
Transmission
|
Gear
|

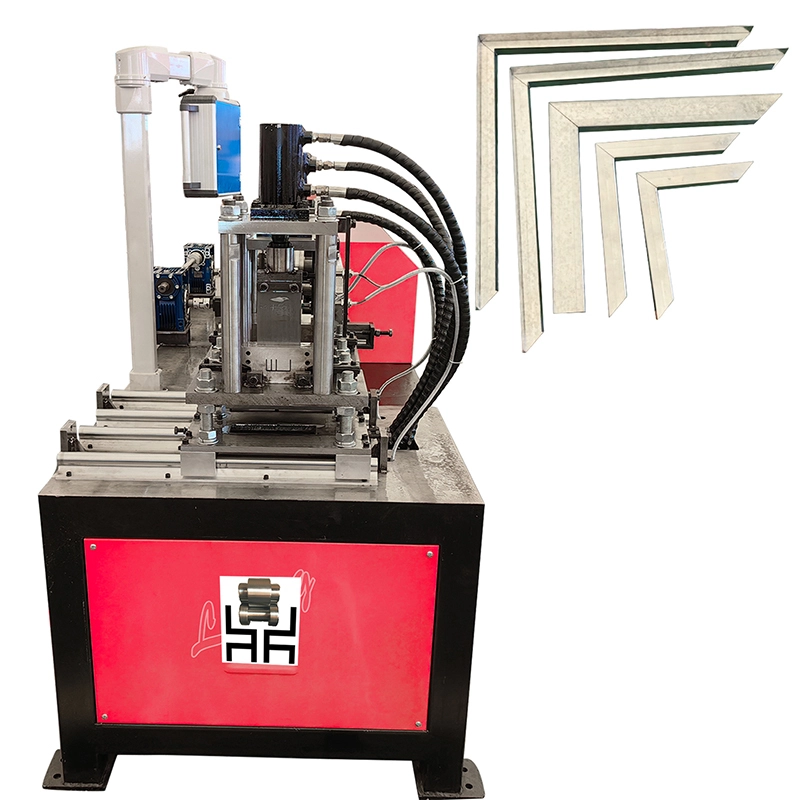

Product display
m5110/170560888250a921.png (2)
m5110/1705608883bbe199.png
m5110/17056088833b63ca.png
m5110/1705608883cae1f6.png
m5110/1705608883c7ef7f.png
m5110/17056088829905a3.png
