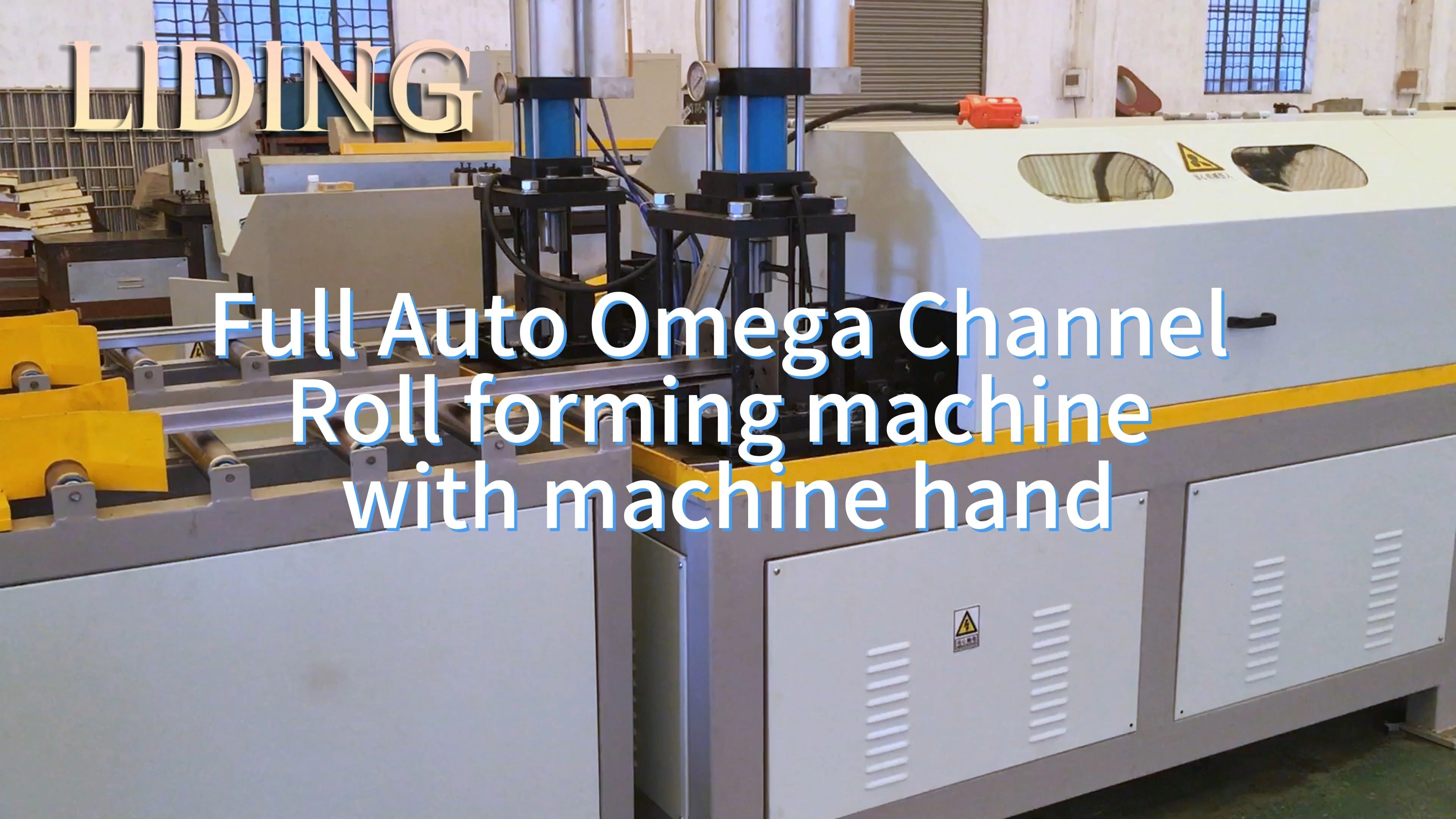

Bottom reinforcement steel Omega roll forming machine
It is used for the production and processing of reinforcement of bottom of elevator.
The manufacturer will do its best to meet the customer's technical requirements and adopt advanced and reliable design and manufacturing technology to complete the design, manufacturing, installation and commissioning work.
Main parameters
● Main motor power 11KW
● Transmission form Gear, chain
● Rolling speed 0-8M/min
● Maximum feeding width 250mm
● Rolling mold material Cr12
● Rolling mold heat treatment hardness HRC58-62
● Mold surface roughness Ra0.8
● Roller shaft material, diameter 40Cr, φ60
● roller groups: 18+5
● mold life ≥1.6 million meters
● Residue recovery method Filter collection
● Rolling mold replacement method Overall lifting, positioning pin fixed
Composition of the machine
● Decoiler,1 set
● Leveler,1 set
● Sensor racks,2 set
● Hydraulic punching unit,7 stations
● Punching Mold,5 set
● Cutting Molds,1 set
● Run out table,1 set
● Cold roll forming machine,1 set
● Electrical control system,1 set
Workflow
Decoiling→ Roll Forming →Straightening → servo feeding → punching → roll forming → automatic cutting → unloading
Product display
