Original: Guangdong,China (mainland)
Motorised discharge, manual tensioning, with 7-roll levelling
High-speed Energy-efficient Lighting Manufacturing System Fully Automatic Led Tube,Housing,And Frame Production Line
5.0
like
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(sets):90(days),2-2(sets):100(days),>2(sets):To be negotiated(days)
Customization:
Customized rollers (Min. Order: 1 sets),LOGO customization (Min. Order: 1 sets),Separate plaque wall (Min. Order: 20 sets)
Brand Name:
Liding
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Work Pressure
16Mpa
Punching
High-speed punching
Application
C Solar Strut
Weight
6000 kg
Warranty
1 Year
Voltage
380V 3phases 50HZ
Video outgoing-inspection
Provided
Selling point
High-accuracy
Profile design
custom
Product name
Precision frame forming machine
Power
18kw
Place of Origin
Guangdong China
Operation
Automatic
Material
Steel Plate
Machinery Test Report
Provided
Keywords
purlin roll forming Making Machine
Key Selling Points
Easy to Operate
Electric Control system
Fully Automatic PLC(imported Brand),transducer, touch panel
Dimension(L*W*H)
About 7m*1m*1.4m
Core Components
PLC, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump
After-sales Service Provided
Online support, Free spare parts, commissioning and training
Products Description
Cutting-Edge light Frame Forming Machines
From cutting and bending to welding and polishing, illumination frame forming machines offer versatility and automation, enabling manufacturers to customize the shapes and sizes of frames according to specific design requirements. By incorporating advanced technology and precision engineering, these machines ensure consistent quality and high productivity in lighting fixture production.
Product Specifications
Automated lighting frame machines details:
Feeding material: white steel coil
Thickness of the plate:0.5mm
Diameter of the axle & Material :Φ40mm，45# steel
Thickness of the plate:0.5mm
Diameter of the axle & Material :Φ40mm，45# steel
Bearing Material：NJ210E
Rolling stages:20stages
Rolling stages:20stages
Rolling Material : Cr12MoV
Productivity: 12m/min
Total power: 17 kw machine motor
Voltage:380V 50Hz 3phase
Side board:30mm
Cutting blade: Cr12MoV with heat treatment
Productivity: 12m/min
Total power: 17 kw machine motor
Voltage:380V 50Hz 3phase
Side board:30mm
Cutting blade: Cr12MoV with heat treatment
Main drive reduction gearbox:
Transmission: Chain and gearbox steering transmission
|
No
|
Item
|
Data
|
|
1
|
Electric Decoiler
|
Loading with 2 Ton
|
|
2
|
Servo feeder
|
1 set
|
|
3
|
Hydraulic punch modular
|
2 Stations,with 2 mold
|
|
4
|
Roll Forming Machine
|
5 Ton
|
|
5
|
Hydraulic cutting modular
|
1 Station,with 1 mold
|
|
6
|
Run Out Table
|
4 m
|
|
7
|
PLC controling
|
PLC control system with touch screen
|
Producing process

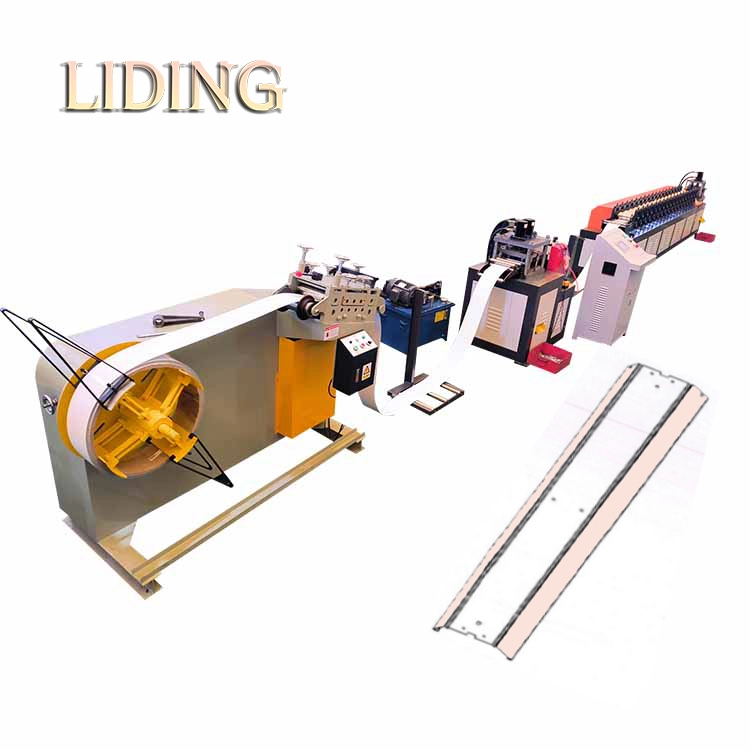

Decoiling & Leveling →Servo Feeding & Punching → Roll forming&Straightening → Cutting→Run-out table
Details Images
20 years of production experience to provide customers with solutions
Optimize Your Lighting Production with Cutting-Edge Illumination Frame Forming Machines
Customized frame manufacturing High-quality frame forming technology
The complete production process is the basis for your choice of machine
2-in-1 Levelling and Unwinding Racks
1.Material width: 200mm. 2. Material thickness: 0.5mm. 3.Servo motor:AC1.8KW. 4. Feeding speed: 10m/min.
Roll forming machine
1. Feeding material: galvanized plate 2. Material thickness:0.5mm 4. Main motor power: 17kw 5. Forming speed: 12m/min.
6.The main motor adopts three-phase motor drive, mechanical positioning deceleration cut-off, 20 groups of profile rollers + 5 groups of straightening rollers
Hydraulic cutting system
Original: Guangdong, China (mainland)
1. with one set of hydraulic system device 3. Motor power: 3 kW. 4. Adopt the oil cylinder control cutting off method.
1.Voltage: 380 V, 50 Hz, 3Phase 2. Punching automatic length measurement: servo motor 3. Automatic measurement: Encoder 4. Length and quantity controlled by PLC. The machine will automatically cut off the length and stop when the required quantity is reached. 5. Control panel: push button switch, touch screen
Company Profile
Foshan Liding Machinery Equipment Co., Ltd.
is established in 2014 and located in Foshan city which is the industrial center in Guangdong Province, China. Liding integrates scientific research, production and operation as one, specializing in the design and manufacture of cold-forming equipment automatic production lines, such as plug-in TDC flange machine, elliptical pipe machine,spiral duct machine, a variety of shaped cold-forming machinery, etc.
Liding provides the most professional and precise cold-forming machine machinery equipment,which has reliable quality and stable performance. A team of experienced engineers is working with PROE design software system and skilled technicians for machine production and inspection. Liding customises stable, efficient roll forming machinery to satisfy customer requirements, aiming to developing business relations with customers from all over the world, strengthening mutual benefits and cooperation.
Company Advantages
Percentage of 100 technical service support
More than 10 professional R&D team
More than 10 professional R&D team
20 years of professional manufacturing experience in cold roll forming machines
Focus on quality and Quick response to clients
CUSTOMER VISIT
Operation-speed regulation-maintenance-type change. overseas trainer service package teachingspackage meeting 100% Welcome new and old customers to visit the factory and learn more.
Certifications
FAQ
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point. Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A3: We can provide the technical offer with FOB, CFR, CIF and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. What's your payment terms ?
A4: 30% as the deposit in advance, 70% as the balance payment after your inspect the machine well and before delivery. After we get down payment, we will arrange production.
Q5. How to get a quotation?
A5: 1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.
Q6. What is the after- sale service?
A6: 1. The warranty is 12 months after the client receives the machine.
2.Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free.
3. We offer technical support for the entire life of our machines.
4. We can send our technicians to install and train the workers in the clients' factories with extra cost.
5.After the quality guarantee period, only charge the production cost of the spare parts.
Q7. Can you provide some spare parts?
A7: Yes, of course you can. Fast wearing parts will be sent to you together with the machine.
