Metal Steel pipe Roll Forming Machine - Liding Machine
Feeding material: aluzinc/galvanized steel or as customer request
Feeding Thickness : 0.3-0.4mm
Rolling stages: 20stages
Productivity: 15m/min
Total power: 8 kw machine motor
Main motor power: 5.5kw
hydraulic pump station power: 2.2kw
Machine table: 100*80 steel pipe welding
Side plate thickness: 25mm
Control systerm: PLC control system with touch screen
Roller driven type：Chain and gear transmission
Power supply: 380v,3phase,50hz
5.0
like
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Technical Parameters
|
Item |
Date |
|
Decoiler |
1 ton |
|
Roll Forming Machine |
20stages |
|
Circular sawing systems |
1 Set |
|
Run-out table |
4 m |
|
PLC controller |
PLC control system with touch screen |
Workflow
Decoiling →Feeding & Roll forming & Straightening→ Cutting→Run-out table

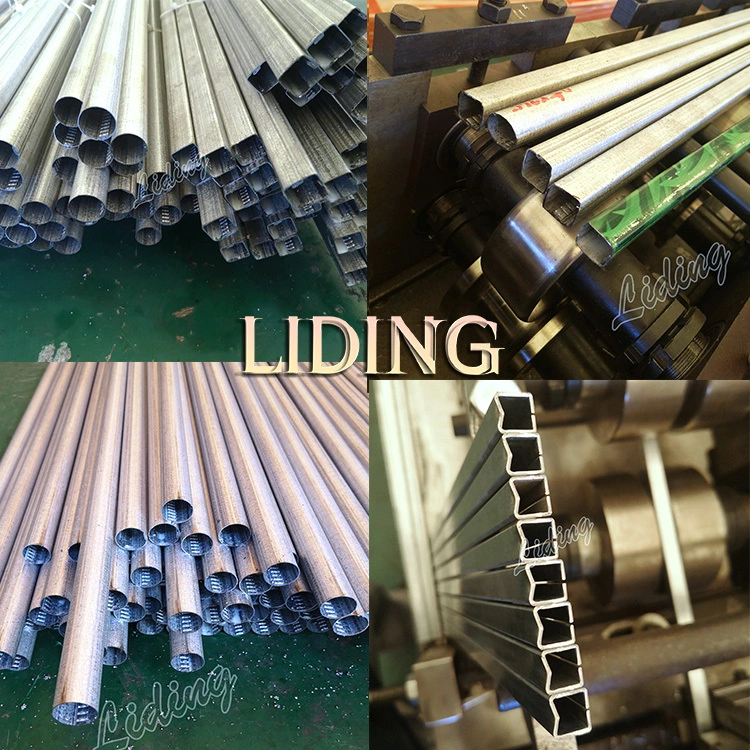

Product display
