Fire Damper Blade Roll Forming Machine
Simple operation:
The whole line is automatic
Assembly line production
Computer controlled
Easy to learn
Technical Parameters
|
Item |
Parameters |
|
Material |
Galvanized Plate |
|
Material Thickness |
1.8 - 2.0 MM (or 1.2 - 1.5 MM) |
|
Width of Coil |
According to Customer's Requirement |
|
Weight of Coil |
≤ 2000 KGS |
|
Blade Size |
150 – 205 MM |
|
Center Distance between Left and Right Grooves |
102 MM, Round Groove |
|
Formed Blade Width |
≤ 205 MM (If ﹥205 MM, Blade Flatness cannot be Guaranteed) |
|
Punching or Punch Blade Coverplate Hole |
According to Customer's Requirement |
|
Motor Power |
5.5 KW / 4 KW |
|
Forming Speed |
1 – 10M/Min, Adjustable |
|
Control Mode |
PLC Control |
|
Main Power Supply |
380 V, 50 HZ, 3 Phase |
|
Hydraulic System Pressure |
25 MPa, Working Pressure: 8 – 12 MPa |
|
External Dimensions of Line |
Approx. 5000 MM × 700 MM × 1200 MM (L × W × H) |
Main features

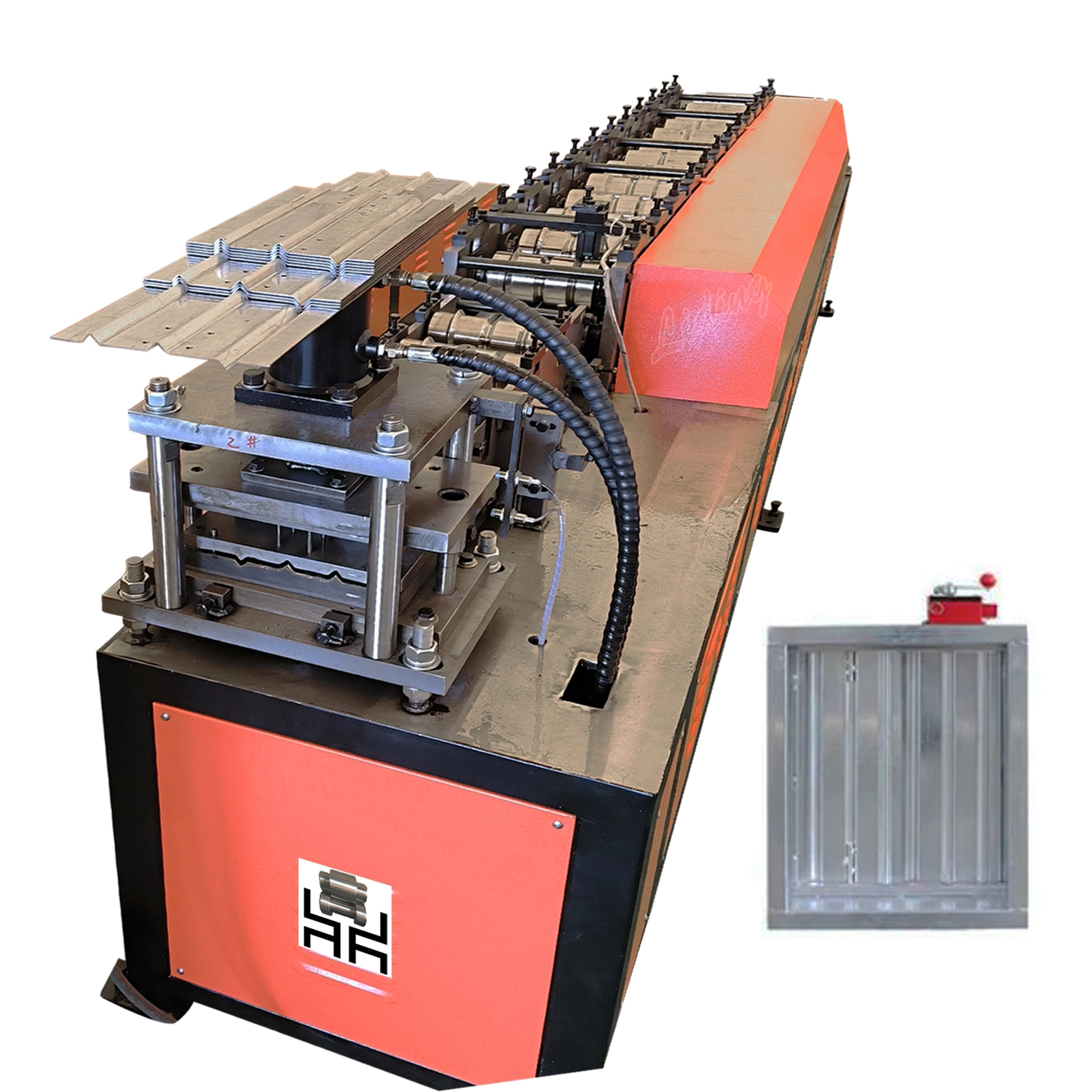

Fire Damper Blade Forming Machine is mainly composed of manual decoiler, forming machine, cutting & punching tools, electrical control system and hydraulic control system, widely used for the mass production of fire damper blade.
The whole line is controlled by Japanese Panasonic PLC, operator can set to run the line automatically and monitor the control process.
Workflow
Fire Damper Blade Machine Production Process:
Decoiling → Roll Forming → Straightening, Reshaping → Cutting To Length (Punching) → Manual Discharging.
Technical Parameters
|
Item |
Quantity |
|
Manual Decoiler |
1 Unit |
|
Forming Machine |
1 Unit |
|
Cutting, Punching Tools |
1 Set |
|
Electrical Control System |
1 Set |
|
Hydraulic Control System |
1 Set |
Product display
