Máquina formadora de vigas en U con ajuste manual de ancho Perfil
Especificaciones:
Especificaciones U30/40/50, espesor del material 0,8 mm
Aplicación:
perfil Para la composición del marco interior de la compuerta cortafuegos, con la esponja intercalada en su interior
المعلمات الرئيسية
● Applicable materials: Cold or galvanized sheet metal
● Material thickness:0.8mm.
● Main motor power: 4KW motor.
● Forming speed: 0-8m/min.
● Number of forming groups: 8 groups+2 Straightening rollers
● Shaft diameter and material: ¢45mm, 45# steel by tempering treatment
● Length calculation method: the length is calculated automatically by encoder.
● Length tolerance: 2000±1.0mm,
● Voltage: 380V/ 3phase/ 50 Hz.
● Dimensions of forming machine: Approx (L) 4m * (W) 1m * (H) 1.15m
● Transmission mode: gear transmission
● Hydraulic cut-off: one set of combination cut-off mold
● Cutter material: Gr12MoV, vacuum treated Hardness HRC62°.
● The machine can roll products width: 40-50mm; height 25mm.
● Width adjustment adopts the overall unilateral adjustment mode, using manual screw adjustment mode to control the width size.
تكوين الآلة
Manual Decoiler,1 set
● Appearance size: about (L)1000mm*(W)1000mm*(H)1000mm
● Applicable outer diameter of steel coil: 1300mm max
● Applicable inner diameter of steel coil: 450mm-508mm
● Maximum width of applicable steel coil: 200mm
● Maximum bearing capacity: 1000kg
● Adopting manual core expanding and opening type tensioning, no power, with brake device.
Hydraulic equipment
● Main motor: 2.2KW
● Oil circuit board: 3 circuits with a set of pressure and flow rate adjustment valves.
● Impeller pump: 17c
● Oil tank capacity 100L
● Oil pressure cooler：Model No. OR-150
CNC automatic control equipment
● Control electric box: independent type, containing cooler.
● Cutting length calculator: 2500/pulse encoder
● This equipment comes with a set of PLC programmable control.
● This equipment comes with a set of touch-type human-machine interface to set the length, quantity, and all necessary parameters.
V.Run-out table
● the machine comes with a 4m bracket
سير العمل
Decoiling- 8 Stations cold roll forming(Manual width adjustment U30/40/50) - hydraulic cutting - Run-out table
تكوين الآلة:
Manual expanding core rising open decoiler, 1 set.
Cold roll forming machine, 1 set (Manual width adjustment)
Cutting device, 1 set.
Hydraulic system, 1 set.
PLC automatic control equipment, 1 set.
Run-out table, 1 set.

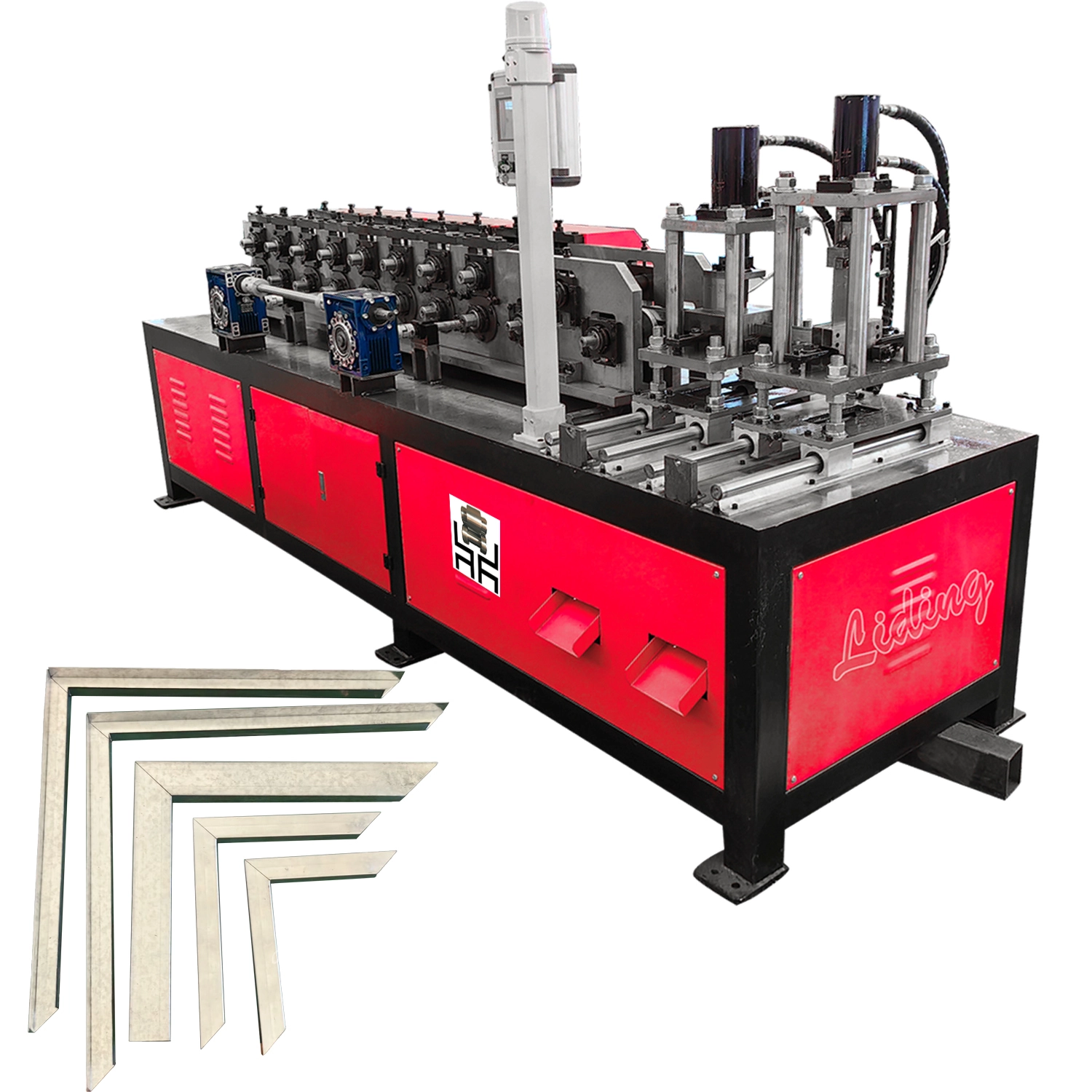

عرض المنتج
