L Angle profile roll forming machine
Application
Angle steel can be used in blower frames or suspended metal and drywall ceiling or drywall partition systems.
سير العمل
Decoiling - Roll Forming - (Servo) Punching 45° Angle - Punching Vertical Edge Hole - Punching Flat Edge Hole - Cutting (Outer Flange Cutting) - Finish
تكوين الآلة
● Decoiler,1 set
● Forming machine,1 set
● Mold stations,4 set
● Angle-cutting mold,1 set
● Punching molds (combination of interchangeable cores),2 sets
● Cutting mold,1 set
● Hydraulic cutting system, 1 set
● PLC control 1 set
Forming machine
● Applicable materials: Cold or galvanized sheet metal
● Material thickness: 2.0mm
● Main motor power: 7.5kw
● Forming speed: 0-6m/min
● Shaft diameter and material:¢ 56mm, 45# steel
● Great wall type plywood: plate thickness 30mm
● Transmission: gear transmission.
● Control system: PLC control
● Machine net weight: about 3tons
● Voltage: 380V/ 3phase/ 50 Hz
● Dimensions of molding machine: L*W*H 4m*0.8m*1.5m
● Forming roll material: Cr12MoV
Cutting off parts
● One set of hydraulic system, hydraulic motor 7.5KW, pressure 15Pa, four stations oil cylinder
● 3 sets of punching molds, 1 set of non-cutting molds
● Mold material: CR12MOV
● Processing hardness HRC60°-62°.
● Adopt online encoder to detect the stopping cutoff

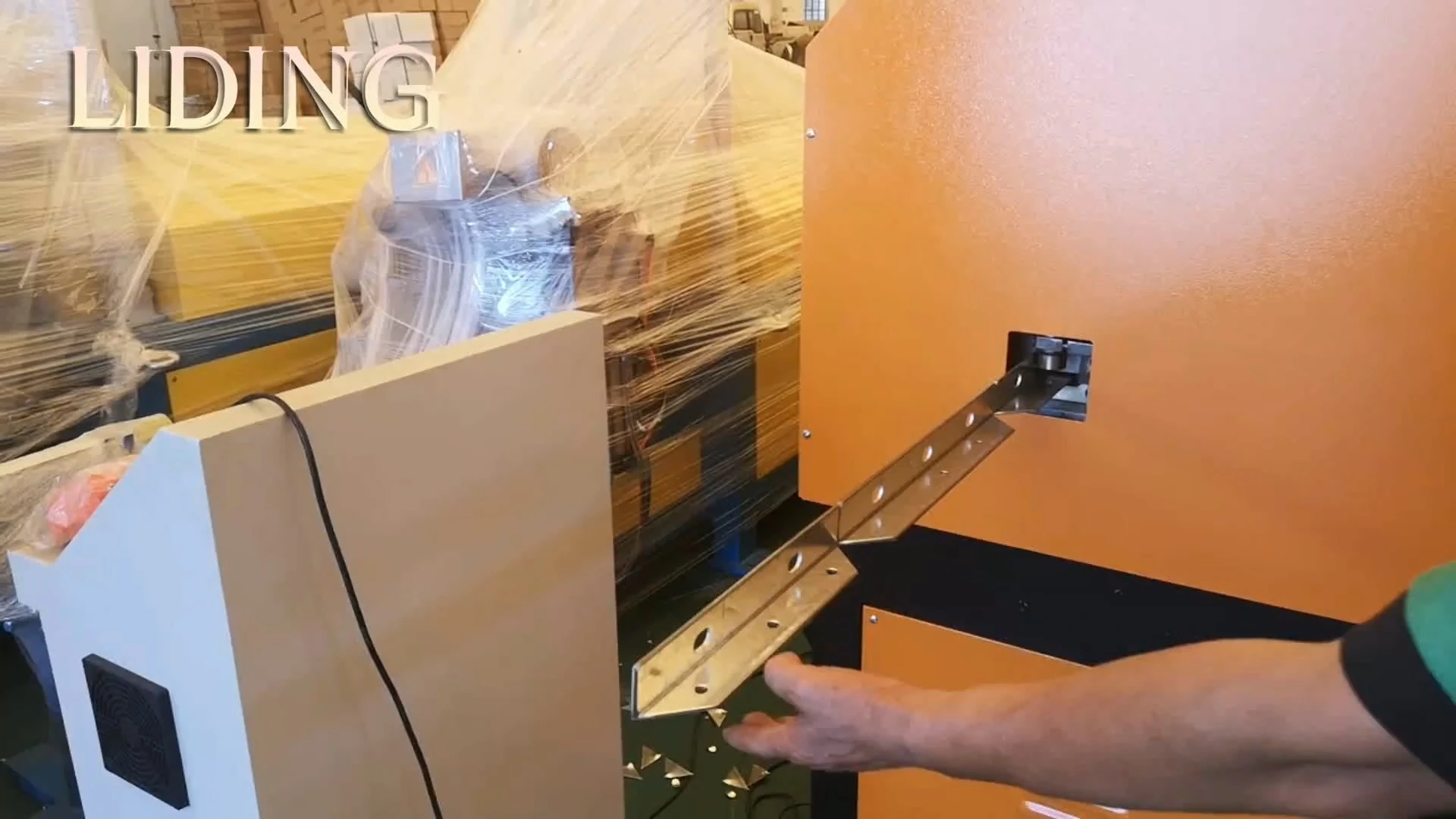

عرض المنتج
