AUTOMATIC Fire Damper Frame ROLL FORMING MACHINE
TECHNICAL SPECIFICATION
Voltage: 380V，50Hz，3phase。
Raw material width: around 196 mm
Material thickness: 0.8mm to 1.2mm
Material: Galvanized and stainless sheet
Production speed: around 6M/min
Production length: ≥3000mm
Equipment total installed capacity: Around 20KW
Technical Parameters
|
Machine Name |
Explain |
Quantity |
Motor(KW) |
|
|
De-coiler |
Manual Expanding |
1 Set |
Manual |
|
|
Leveling System |
9 Rollers |
1 Set |
2.2 |
|
|
Punching Sytem |
Servo Feeding |
|
1 Set |
1.3 |
|
Punching-1 |
The Middle of punching flanging part |
1 Set |
5.5 |
|
|
Punching-2 |
Punching head of the flanging part |
1 Set |
||
|
Main Roll Forming Machine |
|
1 Set |
5.5 |
|
|
Hydraulic Cutting System |
|
1 Set |
4 |
|
TECHNICAL SPECIFICATION
Voltage: 380V，50Hz，3phase。
Raw material width： around 196 mm
Material thickness：0.8mm to 1.2mm
Material： Galvanized and stainless sheet
Production speed: around 6M/min
Production length： ≥3000mm
Equipment total installed capacity: Around 20KW

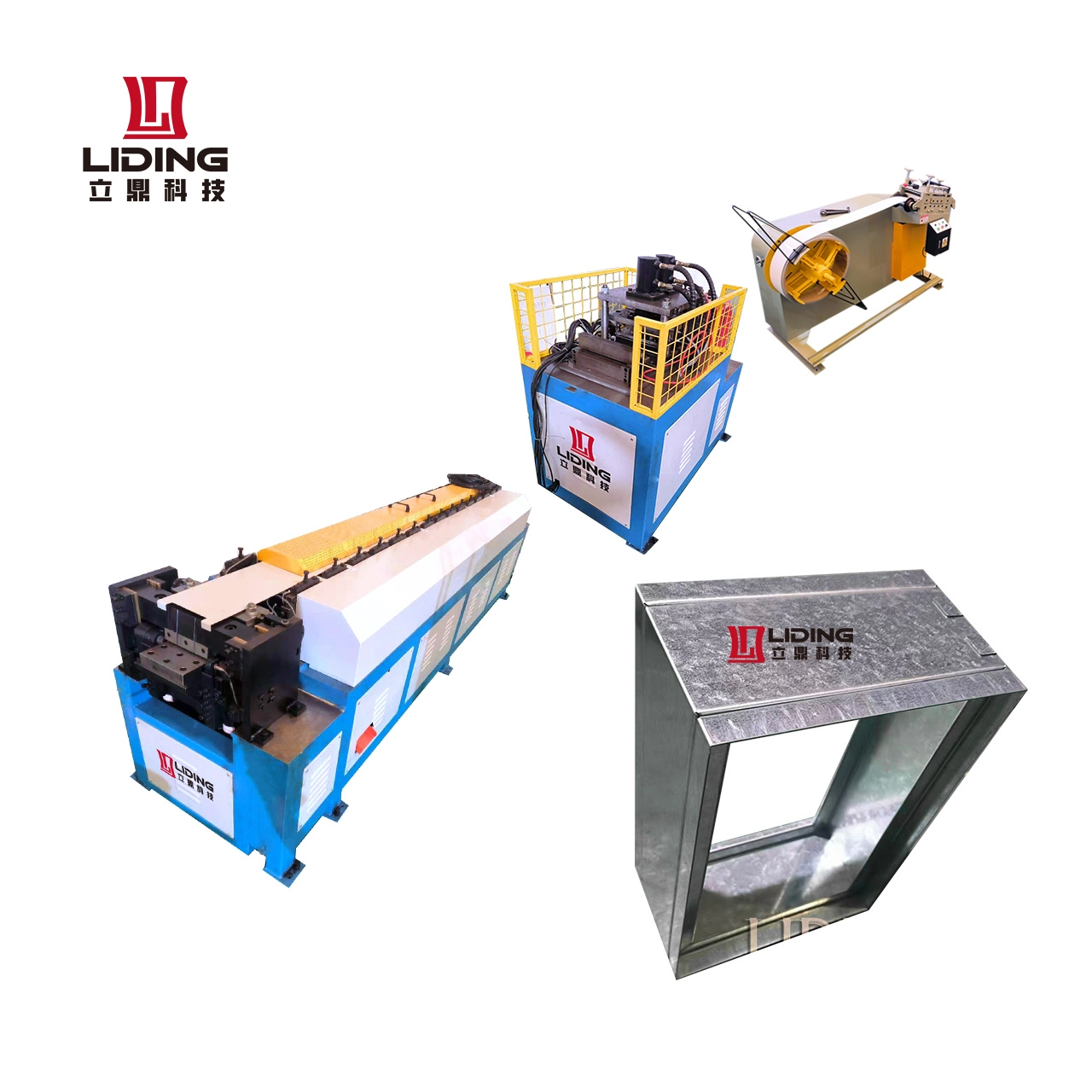

Product display
