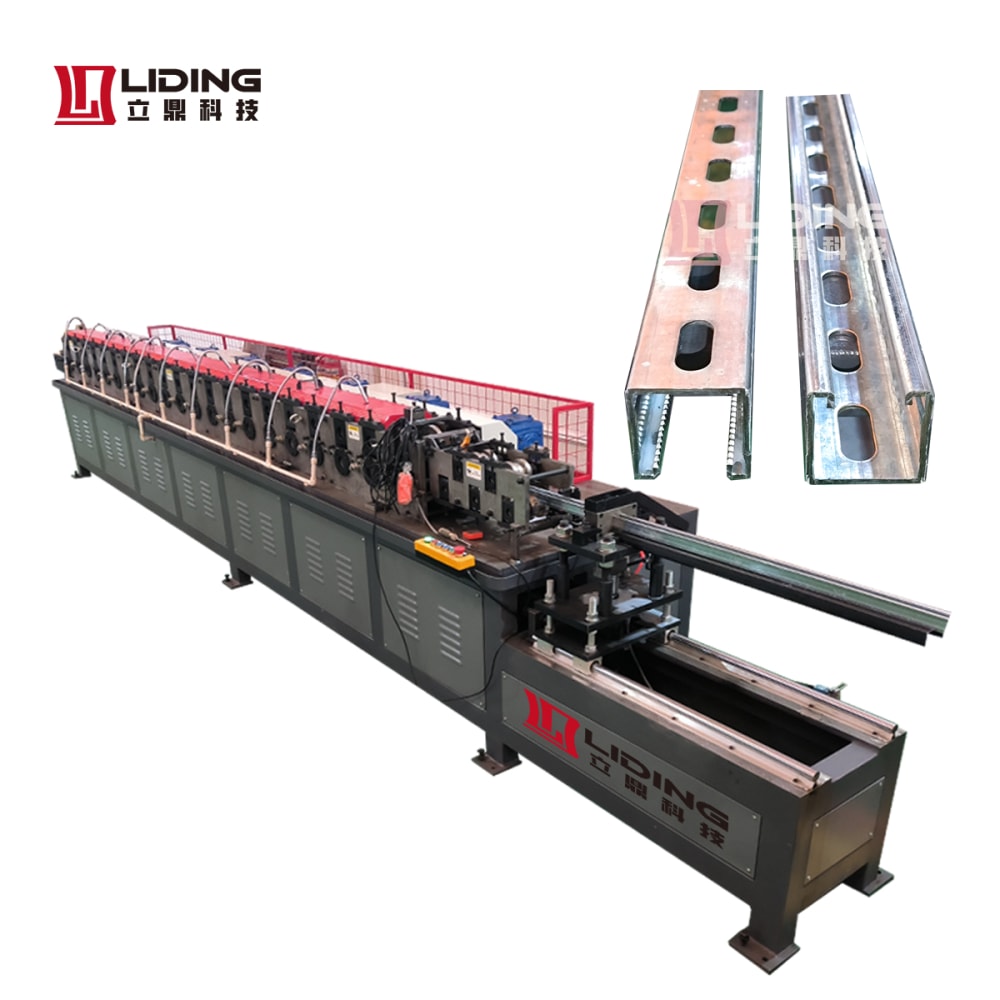

Liding Changeable Solar C Channel Machine
30
+
Years of Experiences
clients worldwide
certification
lidingVideo
lidingTechnical Specifications
| Changeable C Channel Photovoltaic Support Machine | Standard Model | Upgrade Options |
| Standard Profiles | 4121mm / 4141mm C channel | Custom profiles available |
| Production Speed | 10 m/min | 12–15 m/min (servo upgrade) |
| Raw Material | Galvanized steel plate | Stainless steel / aluminum (custom) |
| Applicable Thickness | 1.0–2.0mm | 1.0–2.5mm |
| Main Motor Power | 15 KW | 22 KW |
| Hydraulic Work Pressure | 16 Mpa | Custom pressure |
| Core Components | PLC, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Siemens PLC / Schneider components |
| Roller Material | GCr15 bearing steel | Cr12MOV alloy steel (optional) |
| Roller Hardness | HRC56–58° quenched | HRC60–62° |
| Cutting Blade Material | Cr12MOV quenched | Custom hardened steel |

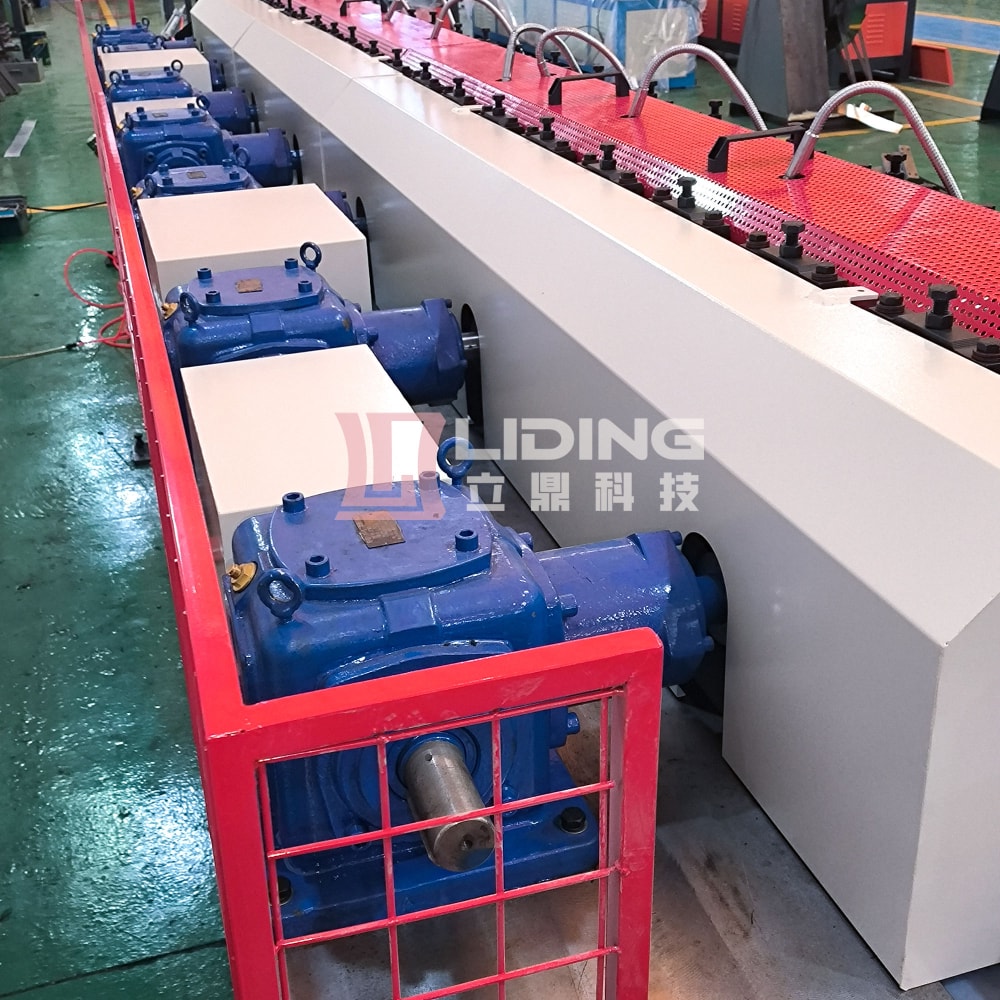

| Transmission Method | Chain and gear drive | Full gearbox drive (optional) |
| Power Supply | 380V 3phases 50HZ | Custom local voltage |
| Control System | Imported PLC + transducer + touch screen | Siemens PLC (optional) |
| Net Weight | 5000 kg | 6000 kg (heavy-duty version) |
| Overall Dimension (LWH) | 700010001400 mm | Customized |
| Product Type | Solar C strut / U type bracket | Cable tray / Pipe support |
| Application | Solar panel mounting / Building structure | Industrial pipe support |
| Warranty | 12 months | Extended warranty available |
| Customization | Logo, packaging, profile design | Full machine customization |
lidingWhy This Is The Best Solar Bracket Machine For Your Business?
One machine replaces two, cuts your equipment cost in half
-
Instead of buying separate machines for 4121mm and 4141mm profiles, this one machine can produce both. You’ll save tens of thousands of dollars in equipment costs and free up valuable floor space in your workshop. Switching between profiles takes only 10 minutes, so you can handle mixed orders without downtime.
-

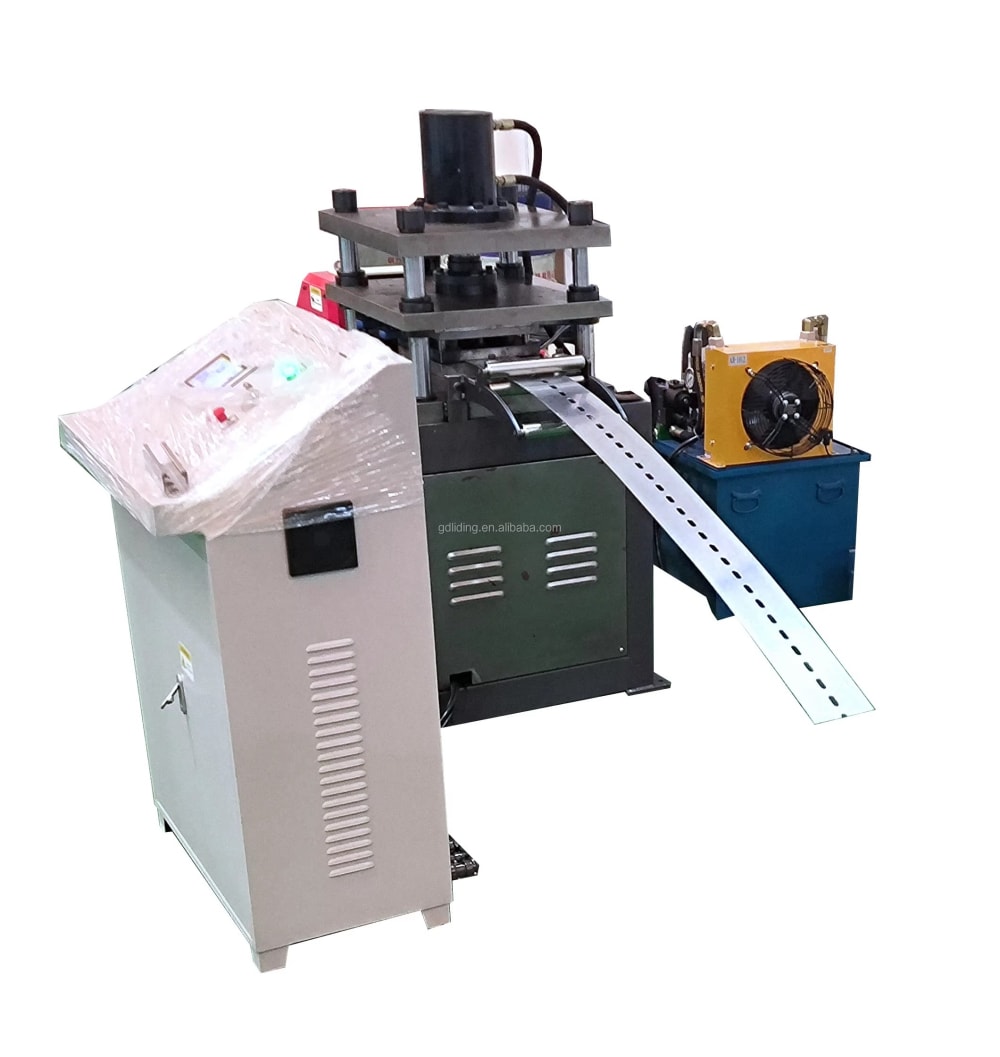

Integrated punching eliminates secondary operations
-
Most cheap machines only form the channel, leaving you to drill all the mounting holes by hand. This machine punches all holes automatically as the material passes through, cutting your production time by 50%. No more manual drilling, no more dusty workshops, no more worker fatigue.
-
Heavy-duty construction for 24/7 solar farm production
-
This is a true industrial-grade machine built for continuous production. It weighs a full 5 tons with a thick steel frame that eliminates vibration even at full speed. The 15KW main motor and 16Mpa hydraulic system deliver consistent power for 24/7 operation, making it perfect for large-scale solar farm projects.
-
Easy to operate, no skilled workers required
-
The intuitive touch screen interface makes this machine extremely easy to use. Any worker can learn to operate it in less than an hour. You don’t need to hire expensive skilled technicians, which further reduces your labor costs.
-

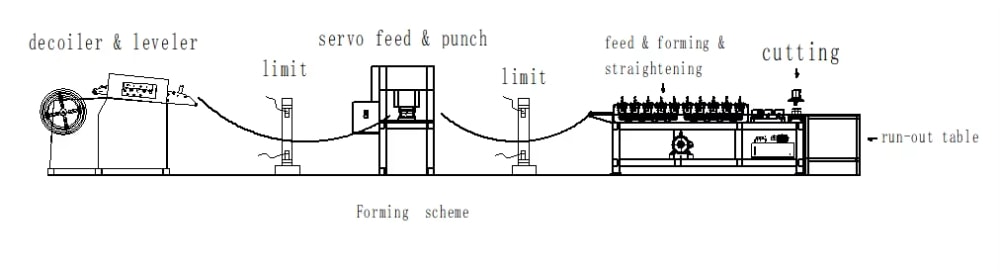

Standard Production Process
-
Decoiling → Automatic Leveling & Feeding → Continuous Roll Forming → High-Speed Hydraulic Punching → Hydraulic Precision Cutting → Finished Solar Bracket Discharging
-

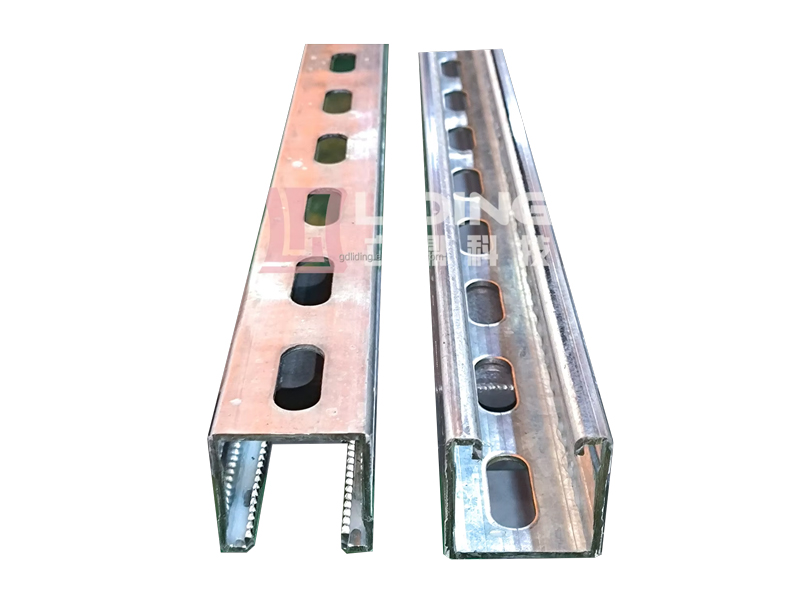

lindingApplicable Industries & Application Scenarios
This professional changeable C channel photovoltaic support machine is ideal for:
Solar Farm Installation Contractors
● Produces brackets for residential, commercial and utility-scale solar projects
Solar Panel Mounting System Manufacturers
● Mass production of standard solar C struts and U type brackets
Building Steel Structure Suppliers
● Manufactures structural supports for buildings and infrastructure
Industrial Pipe & Cable Support Producers
● Makes pipe hangers, cable trays and electrical support systems
