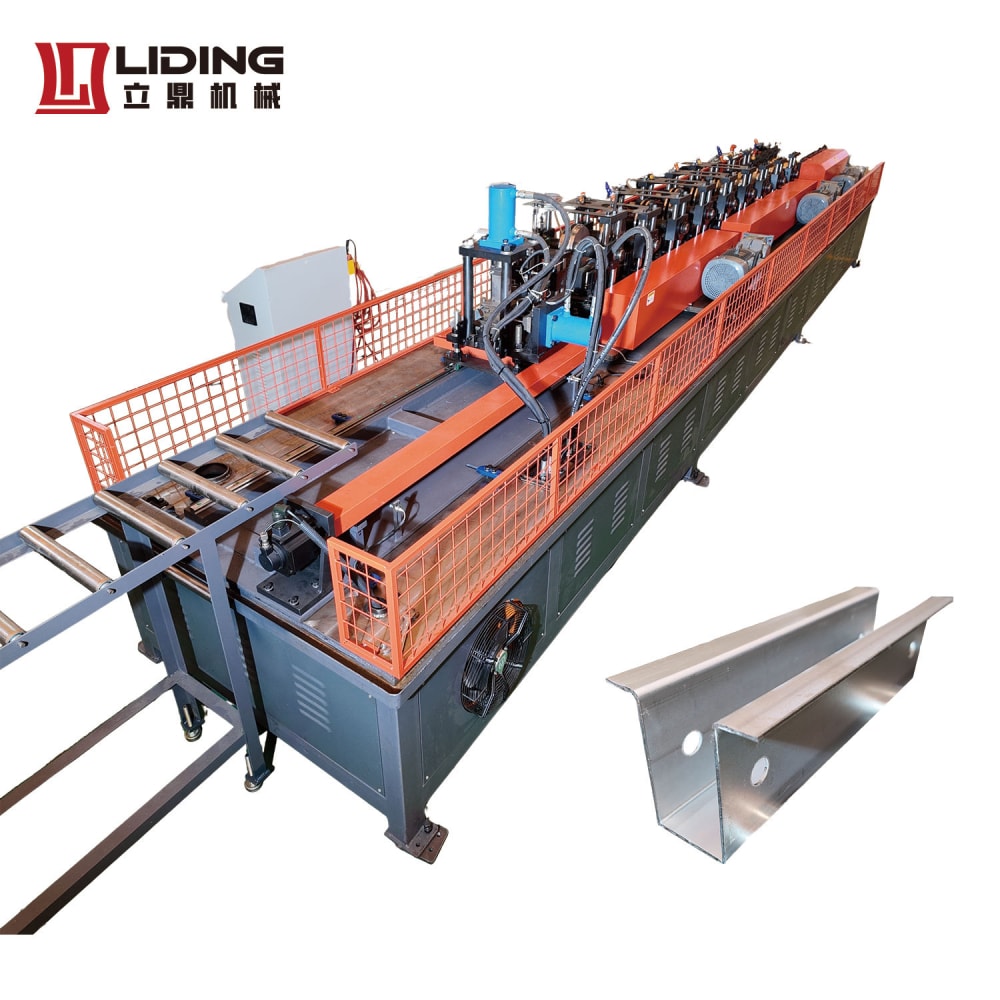

Liding Changeable Omega Bracket Roll Forming Machine
30
+
Years of Experiences
clients worldwide
certification
lidingVideo
lidingTechnical Specifications
| Changeable Omega Bracket & Hat-Shaped Keel Machine | Standard Model | Upgrade Options |
| Standard Profiles | 30×35 / 40×35 / 50×35 / 60×35 / 70×35 | Custom profiles available |
| Production Speed | 20 m/min | 25–30 m/min (high-speed upgrade) |
| Raw Material | Galvanized steel coil | PPGI / PPGL / Stainless steel (custom) |
| Applicable Thickness | 1.0–2.0 mm | 1.0–2.5 mm |
| Total Motor Power | 22 KW | 30 KW |
| Forming Stations | 14 stations | 18 stations (for complex profiles) |
| Roller Material | Cr12MoV steel | Custom alloy steel (optional) |
| Roller Hardness | HRC58–60° quenched | HRC60–62° |
| Cutting Blade Material | Cr12MoV with heat treatment | Custom hardened steel |
| Side Plate Thickness | 30 mm | 35 mm (heavy-duty version) |
| Transmission Method | Full gearbox transmission | - |
| Decoiler Max Load | 3 tons | 5 tons (electric decoiler upgrade) |
| Machine Net Weight | 7000 kg | 8500 kg (heavy-duty version) |
| Power Supply | 380V 50Hz 3Phase | Custom local voltage |

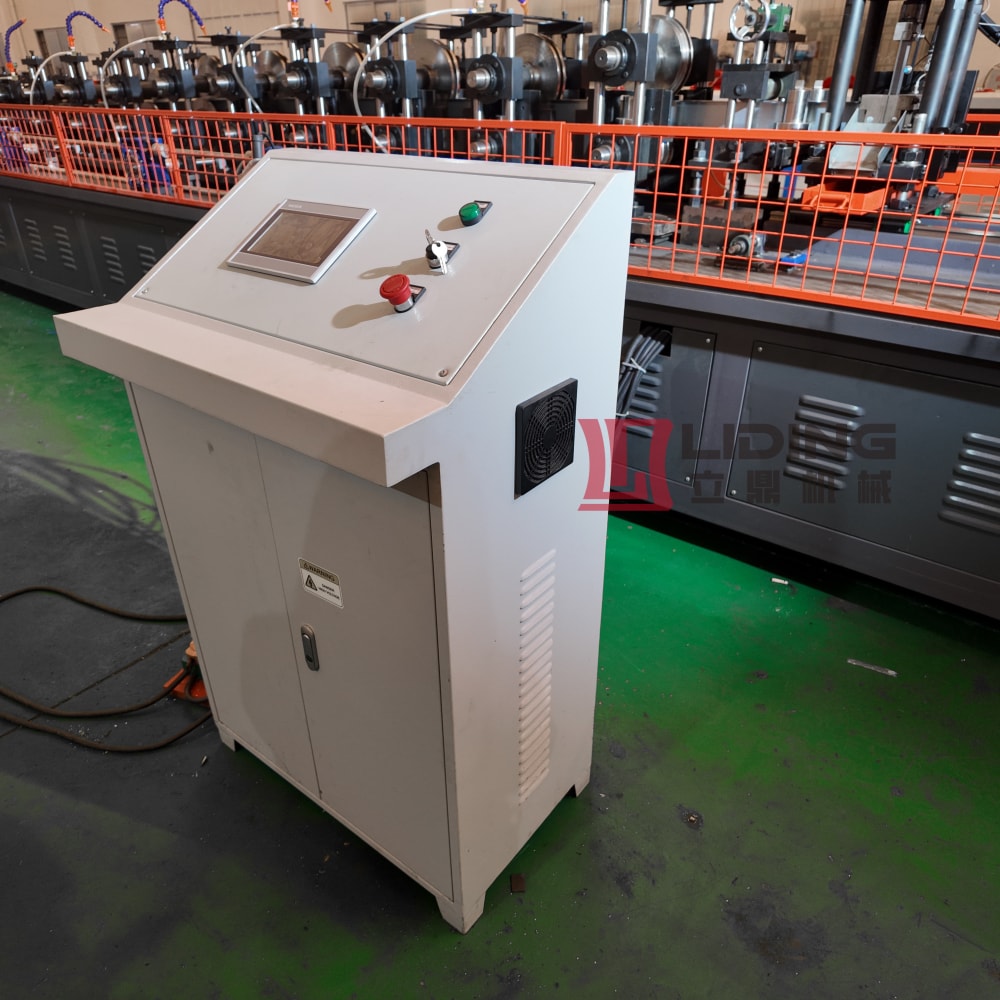

| Control System | PLC + touch screen + servo motor | Siemens PLC (optional) |
| Cutting Accuracy | ±0.2 mm | ±0.1 mm (precision upgrade) |
| Run Out Table Length | 4 m | 6 m (optional) |
| Overall Dimension (LWH) | 1100012001500 mm | Customized |
| Product Type | Omega bracket / Hat-shaped keel / Roof purlin | Custom structural profiles |
lidingWhy This Is The Best Omega Bracket Machine For Your Business?
One machine replaces five, cuts equipment cost by 80%
-
Instead of buying 5 separate machines for different sizes, this one machine produces all 5 standard omega brackets. You’ll save hundreds of thousands of dollars in equipment costs and free up massive floor space in your factory. Switching between profiles takes only 5 minutes, so you can handle mixed orders seamlessly.
-
20m/min speed doubles your production capacity
-
This is the fastest omega bracket machine on the market. It runs at a steady 20m/min nonstop, producing over 10,000 meters of keels per 8-hour shift. You’ll be able to take on larger projects and meet tight deadlines that your competitors can’t handle.
-
Full gearbox transmission for 15+ years of reliable service
-
Unlike cheap chain drive machines that stretch and break down constantly, this machine uses full gearbox transmission. It delivers smooth, vibration-free operation and requires almost no maintenance. With proper care, it will serve your factory reliably for over 15 years.
-

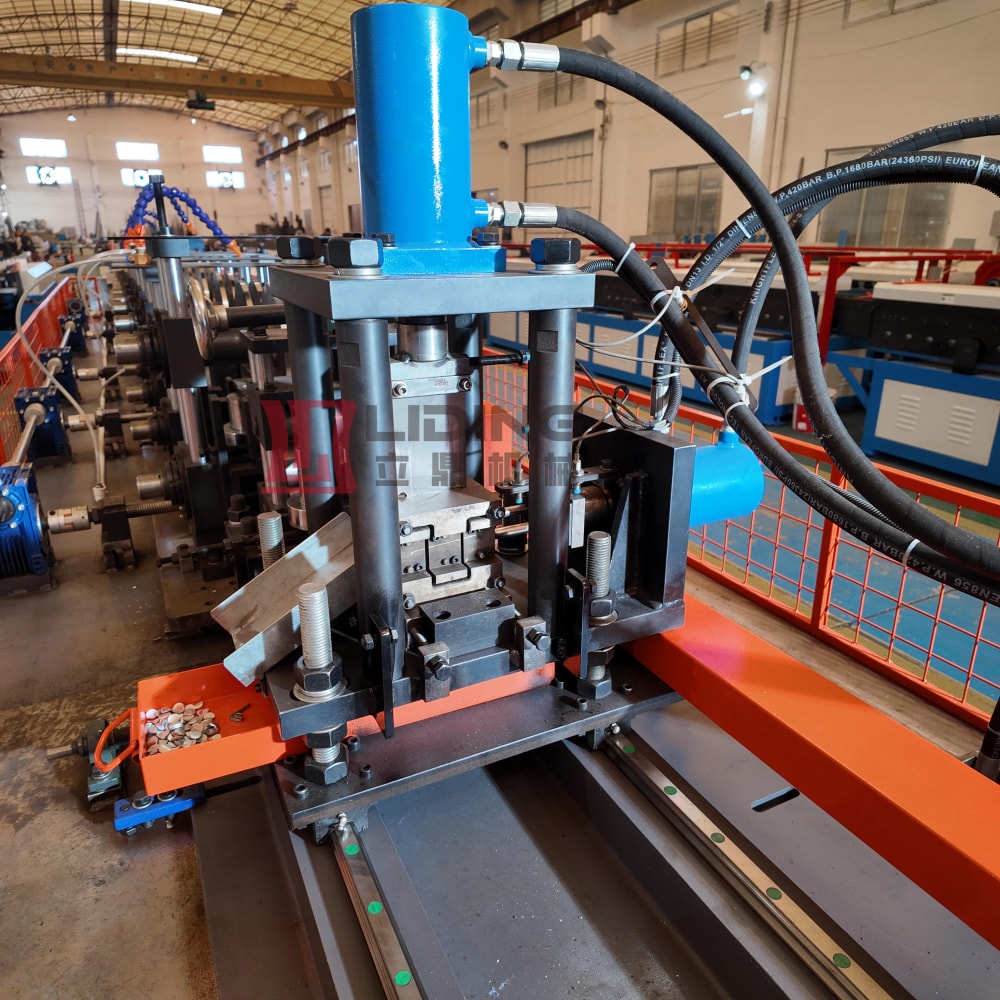

Servo tracking cutting delivers perfect precision
-
The advanced servo tracking system cuts the material while it’s still moving, so there’s no need to stop production. Online encoder detection ensures ±0.2mm cutting accuracy every time. Your hat-shaped keels will fit perfectly together with no gaps, making installation fast and easy.
-
Standard Production Process
-
Decoiling → Continuous Roll Forming & Straightening → Servo Tracking Punching & Cutting → Finished Product Discharging
-
lindingApplicable Industries & Application Scenarios
This professional changeable omega bracket roll forming machine is ideal for:
Steel Structure Roofing Contractors
● Produces high-strength hat-shaped purlins for large-span lightweight roofs
Prefabricated Building Component Manufacturers
● Supplies standardized keels for modular construction projects
Warehouse & Storage Shelf MakersManu
● factures omega brackets for industrial shelving and racking systems
Photovoltaic Support System Suppliers
● Makes structural components for solar panel mounting systems
