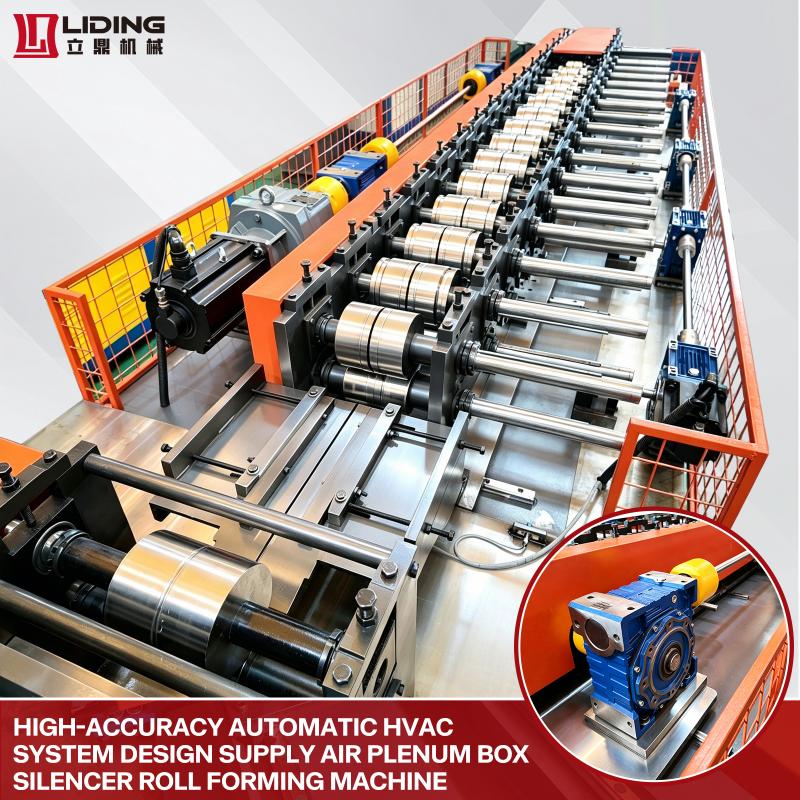

High-Accuracy Automatic HVAC Air Plenum Box & Silencer Roll Forming Machine | 15KW Ductwork Noise Control Equipment LD-SF01

We’ve been making cold roll forming equipment for 30 years, and we know exactly what frustrates HVAC manufacturers the most about making air plenums and silencers. Hand-fabricated units are never perfectly square, they leak air, they don’t deliver consistent noise reduction, and they take hours of skilled labor to make. This Liding LD-SF01 solves all these problems. It turns raw steel coils into perfectly formed plenum box and silencer profiles automatically, with consistent dimensions and airtight seams. No more rework, no more noise complaints, no more wasted labor. It’s the essential addition to your HVAC production line.

30 +

Years of Experiences

500+

clients worldwide

certification

1.5mm Heavy-Duty Sheet Forming Capacity

Handles galvanized steel and aluzinc up to 1.5mm thick, perfect for industrial and commercial HVAC applications

15KW Industrial-Grade Power System

Delivers consistent power for continuous production, no stalling or jamming even with thicker materials

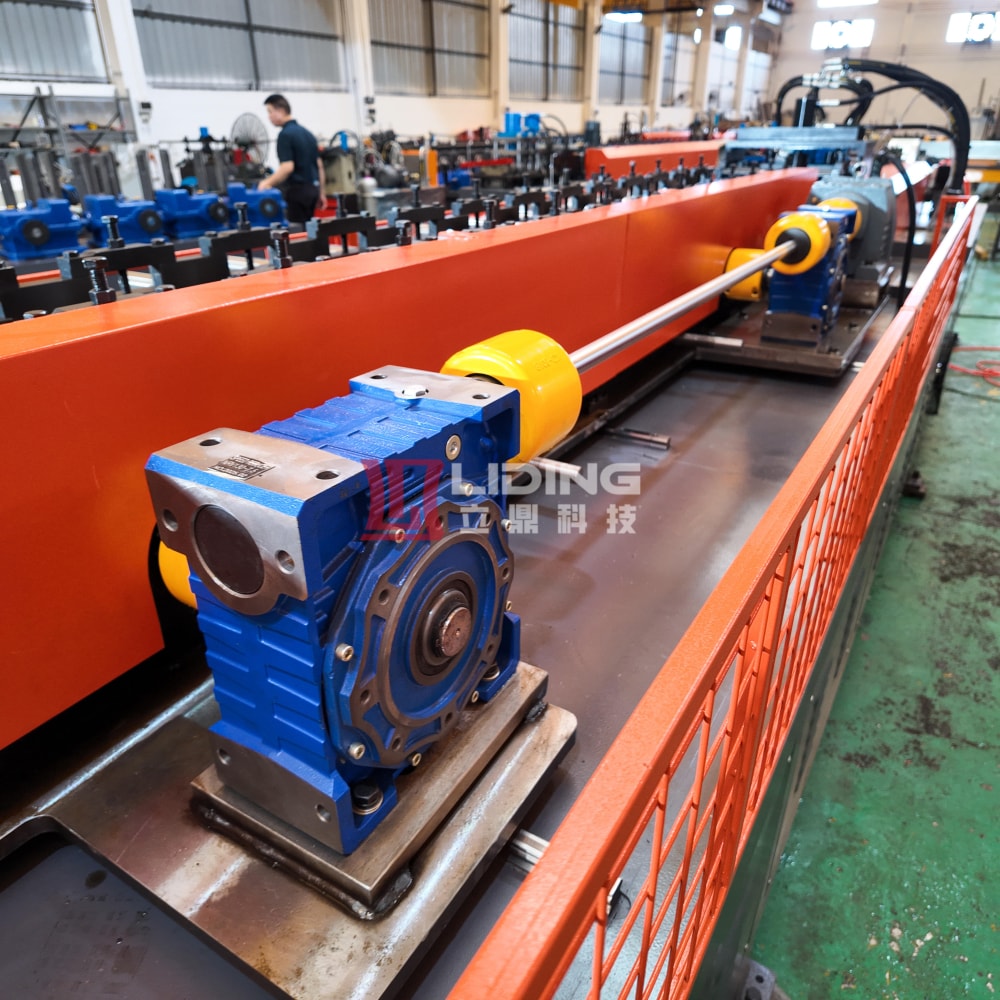

Fully Automatic Imported PLC Control

One-click length adjustment, intuitive touch screen interface, no complicated programming required

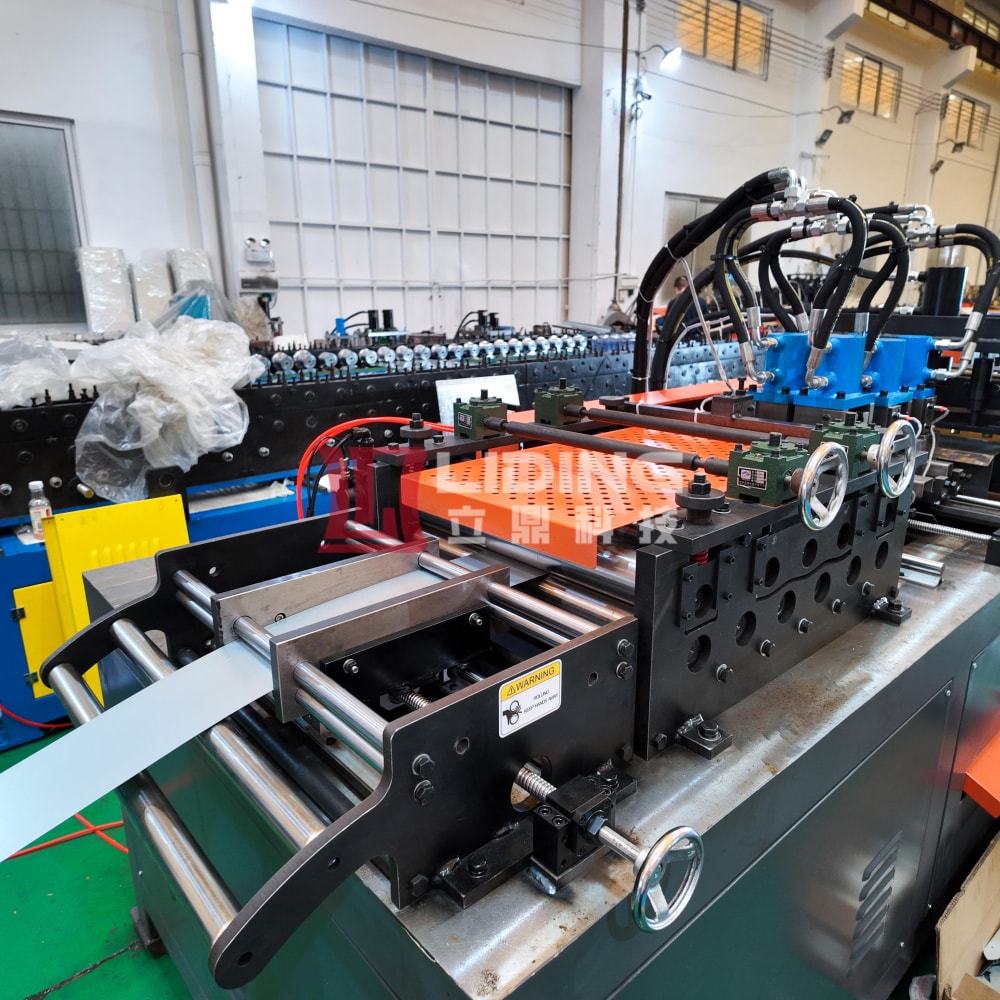

Long Service Life Design

Precision-engineered components and heavy-duty construction ensure years of reliable operation with minimal maintenance

lidingVideo

lidingTechnical Specifications

HVAC Air Plenum Box & Silencer Roll Forming Machine	Model LD-SF01	Upgrade Options
Raw Material	GI / GL galvanized steel	Stainless steel / aluminum (custom)
Applicable Thickness	0.5–1.5mm	0.5–2.0mm
Production Speed	6–8 m/min	8–10 m/min (servo upgrade)
Main Motor Power	15 kW	18.5 kW
Roller Material	GCr15 bearing steel	Cr12MOV alloy steel (optional)
Roller Hardness	HRC56–58° quenched	HRC60–62°
Cutting Blade Material	Cr12MOV quenched	Custom hardened steel
Transmission Method	Chain and gear drive	Full gearbox drive (optional)
Power Supply	380V 50Hz 3 Phases	Custom local voltage
Control System	Imported PLC + transducer + touch screen	Siemens PLC (optional)
Net Weight	3000 kg	3500 kg (upgrade version)
Overall Dimension (LWH)	500010001500 mm	Customized
Product Type	Air plenum box profile / Duct silencer profile	Sound attenuator profile
Application	HVAC ductwork / Noise control systems	Air handling units
Warranty	12 months	Extended warranty available
Customization	Logo, packaging, profile design	Full machine customization
HVAC Air Plenum Box & Silencer Roll Forming Machine	Model LD-SF01	Upgrade Options
Raw Material	GI / GL galvanized steel	Stainless steel / aluminum (custom)

product details

lidingWhy choose this machine?

Consistent quality that passes every inspection

Hand-made silencers and plenums always have inconsistent dimensions and leaky seams, which ruins their noise reduction performance. This machine produces every profile exactly the same, every single time. The seams are perfectly tight, and the dimensions are accurate to ±0.3mm, so your units will always deliver the specified noise reduction and pass all inspections.

Cut your labor costs by 70%

Before this machine, you needed 2-3 skilled workers spending hours cutting, bending, and welding each plenum box. Now one unskilled worker can operate this entire line and produce more units in an hour than your team used to make in a day. Your labor costs will drop dramatically overnight.

Built to last for 15+ years

We don’t cut corners on construction. This machine features a heavy-duty steel frame and precision-machined components that are designed to withstand years of continuous use. With only basic maintenance, it will serve your factory reliably for over 15 years.

Customizable for all your needs

Every HVAC project is different, and we get that. We can customize this machine to produce any plenum box or silencer profile you need. Whether you’re making standard residential units or heavy-duty industrial silencers, we can build the perfect machine for you.

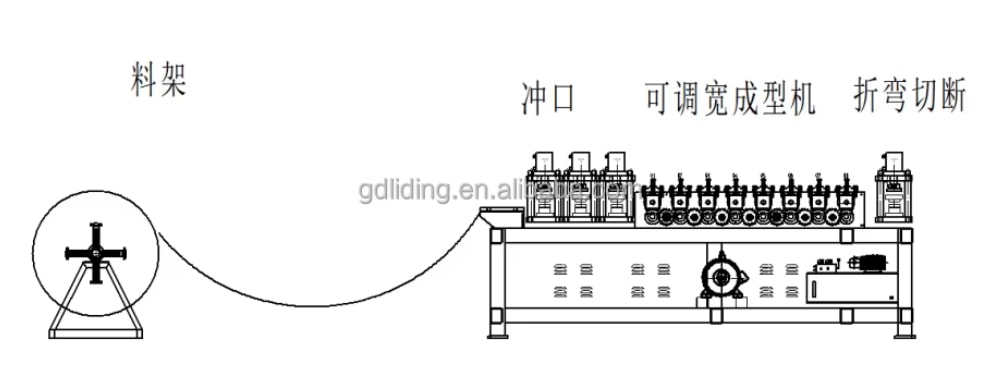

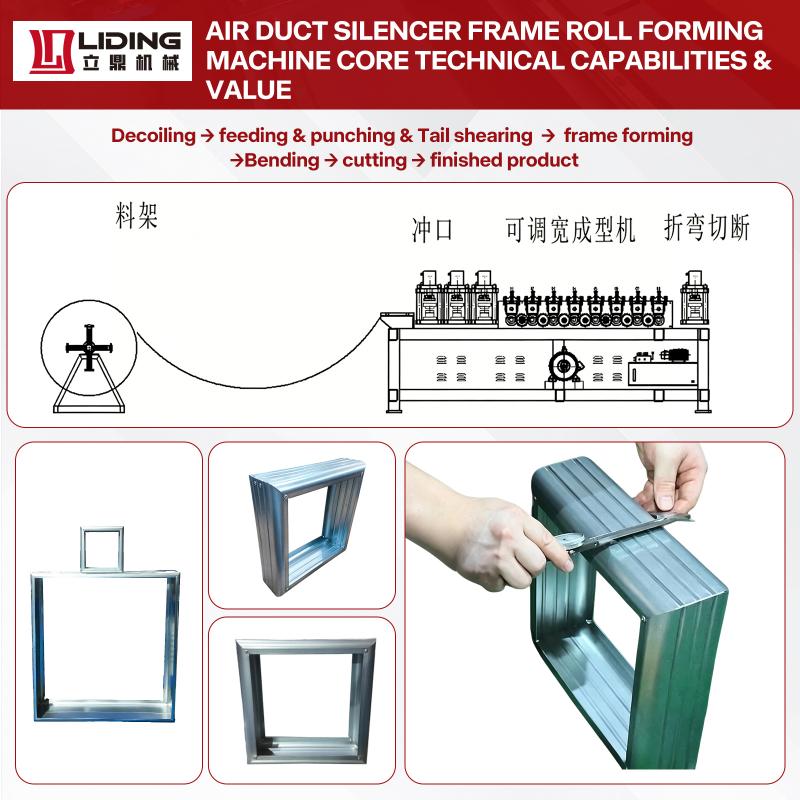

Standard Production Process

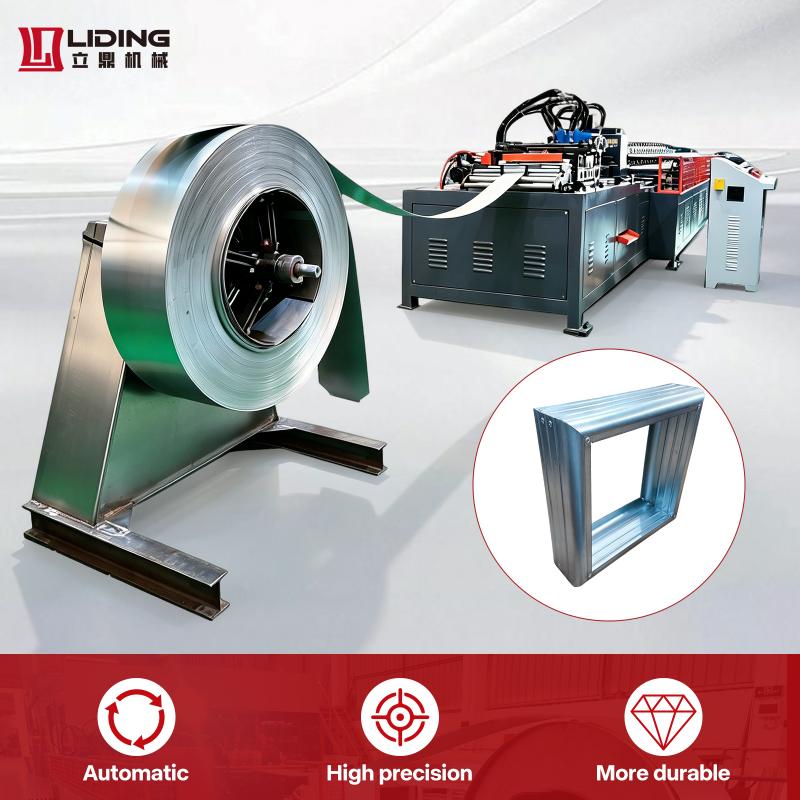

Decoiling → Automatic Leveling & Feeding → Continuous Roll Forming → Hydraulic Precision Cutting → Finished Plenum/Silencer Profile Discharging

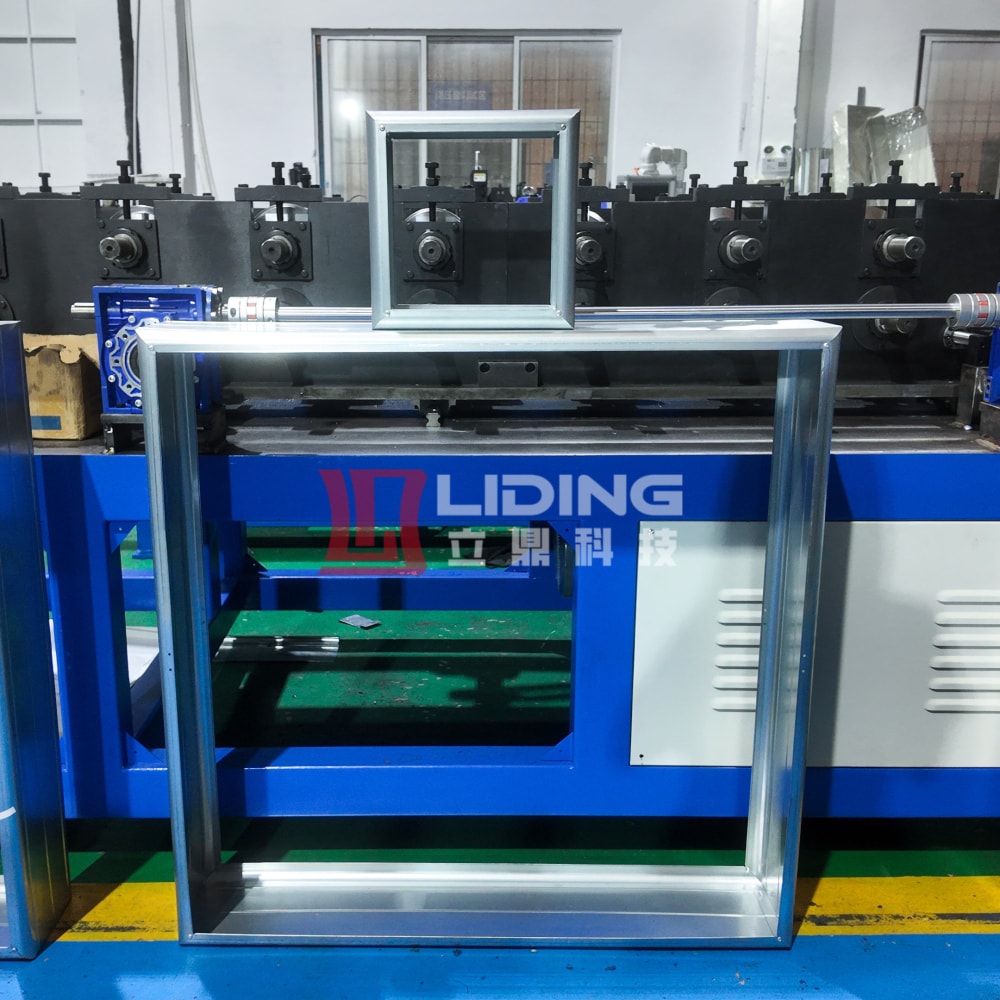

lindingApplicable Industries & Application Scenarios

This professional plenum and silencer machine is ideal for:

HVAC Equipment Manufacturers

● Production of air plenum boxes and duct silencers for residential and commercial buildings

Noise Control System Suppliers

● Manufacturing of sound attenuators and industrial noise reduction equipment

Ventilation Engineering Companies

● In-house production of custom plenums and silencers for construction projects

Air Handling Unit Makers

● Production of internal components for air handling units and ventilation systems
