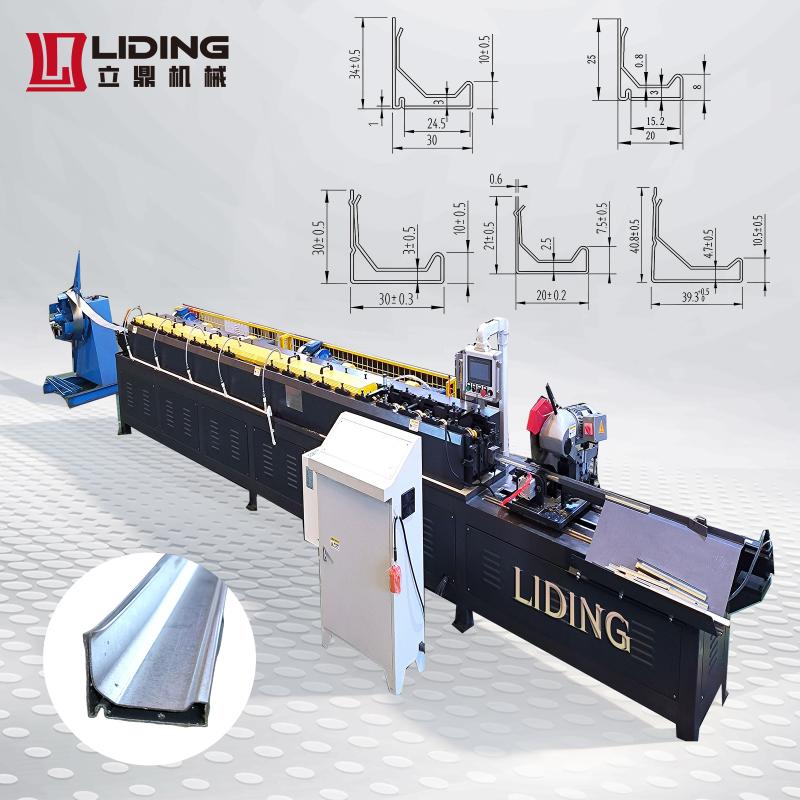

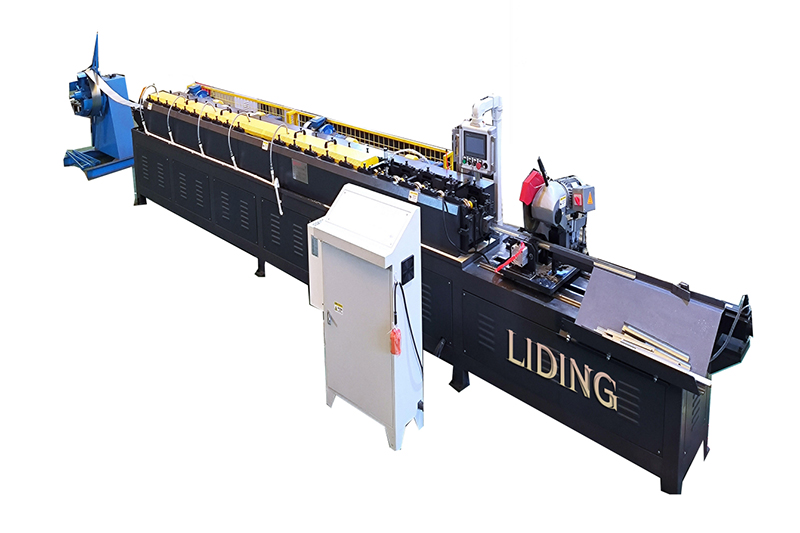

High-Performance TDC Flange Forming Machine – Servo Flying Cut, 24 Stations, Gearbox Drive

This machine utilises 24 sets of rollers, representing an upgraded configuration from the standard 18 stations. The increased number of roller stations means a smaller amount of deformation per station; stress is fully released during the gradual bending process, minimising springback, and the final forming precision is significantly higher than that of solutions with fewer stations. Key benefit: High precision ensures consistent flange dimensions, eliminating the need for trimming during on-site assembly and directly improving installation efficiency.

Liding’s core team has specialised in the cold-forming sector for over 30 years. Our high-specification TDC flanging machines have been exported to more than 50 countries worldwide, with cumulative shipments exceeding 2,000 units. The equipment is CE-certified, and core components utilise international brands (such as Panasonic/Siemens PLCs and Schneider Electric), ensuring compliance with standards across major global markets. Core Values: Proven design solutions, reliable mass delivery capabilities and a comprehensive global after-sales support system – you are purchasing a mature piece of equipment that has been validated by the global market.

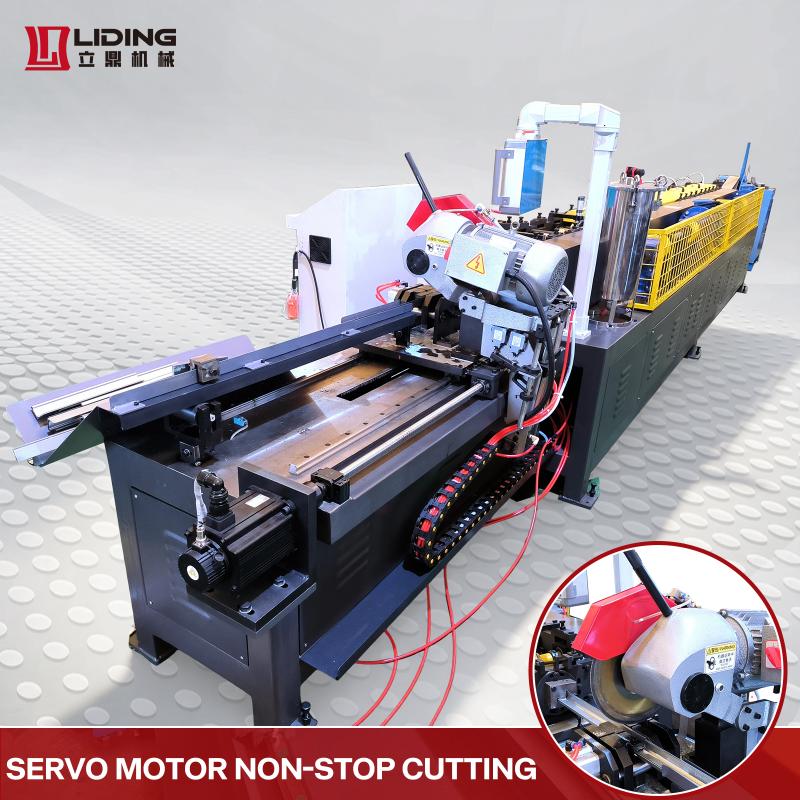

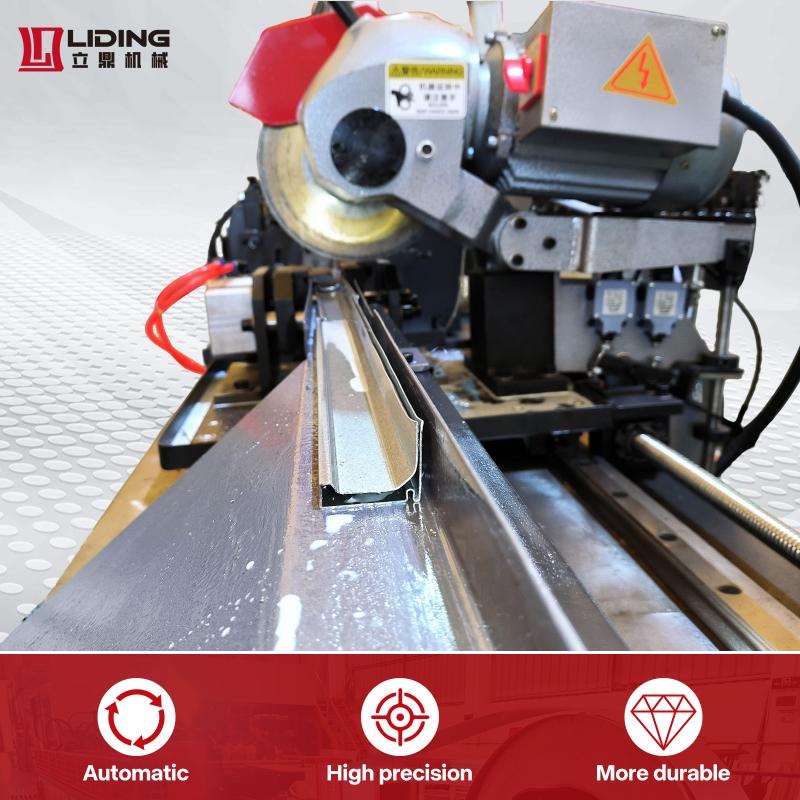

Traditional pneumatic sawing requires the sheet to be stationary during cutting, resulting in time loss with every stop and start. This machine utilises a servo flying saw; the system tracks the sheet’s feed speed in real time, performing fixed-length cuts during continuous operation, whilst continuously correcting the cutting position via closed-loop feedback. Core Value: Cutting length tolerances are controlled within ±0.5 mm/m; the cut edges are smooth and burr-free, eliminating the need for secondary trimming and resulting in higher material utilisation.

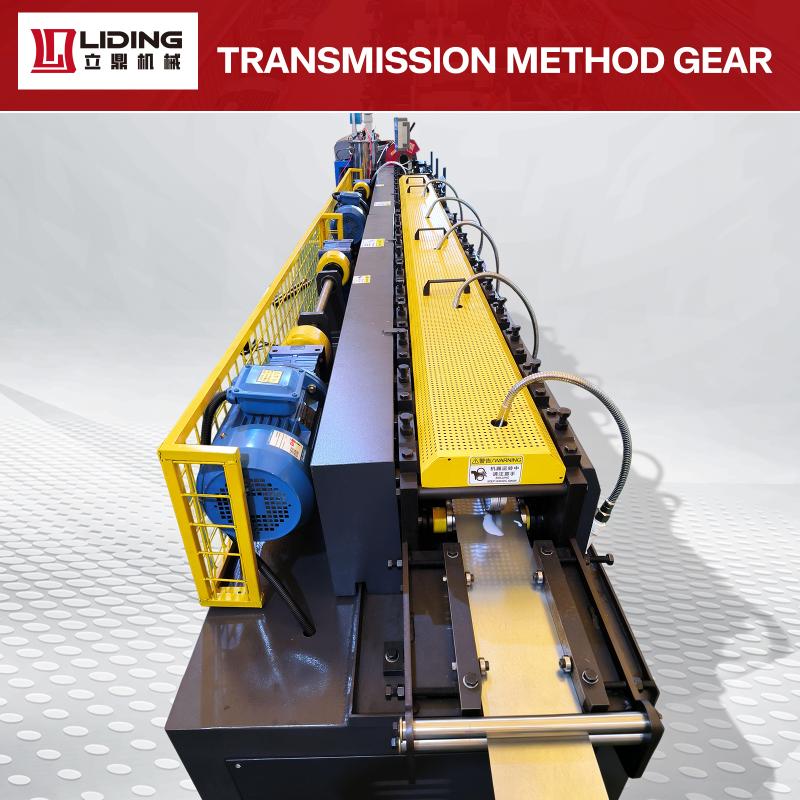

Gearbox transmission replaces chain drive, completely eliminating the problem of chain stretch and wear caused by long-term operation, and eliminating the need for regular tension adjustments. The PLC control console is equipped with a dedicated cooling system, providing forced cooling in high-temperature workshop environments to prevent the control system from crashing due to overheating or component ageing. Core value: a maintenance-free transmission system combined with temperature-controlled protection supports 24-hour continuous production, significantly extending the annual effective operating time.
